BMW X3 Service & Repair Manual: Replacing recirculated air microfilter

BMW X3 Service & Repair Manual / HVAC / Microfilter / Replacing recirculated air microfilter

Special tools required:

  • 00 9 322

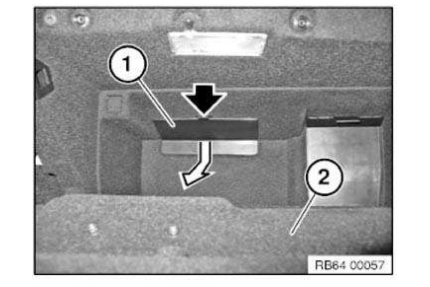

Open glove compartment (2).

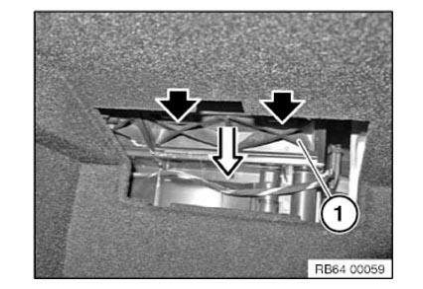

Unclip service bracket (1) at marked location and remove in direction of arrow.

HVAC

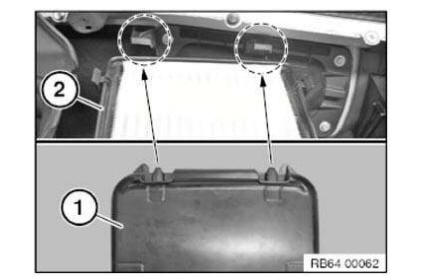

Unclip flap (1) at the marked tabs and remove in direction of arrow.

HVAC

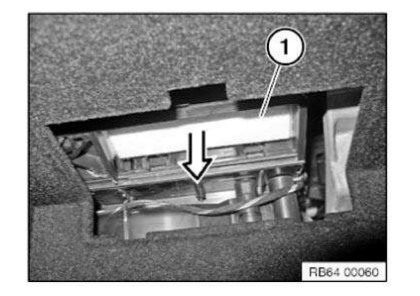

Remove right microfilter (1) in direction of arrow.

If necessary, use special tool 00 9 322 as an aid.

HVAC

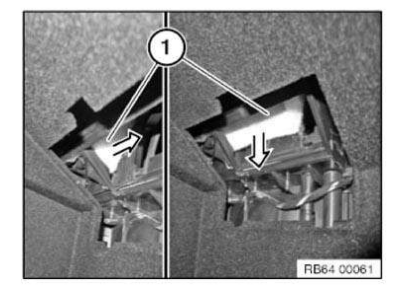

First, pull the left microfilter (1) to the right and then remove toward the bottom.

If necessary, use special tool 00 9 322 as an aid.

HVAC

    Replacing microfilter for interior ventilation
    IMPORTANT: Risk of damage! A/C system must not be operated without the prescribed filter element. Note on cleaning: Spray microfilter housi ...
