BMW X3 Owners Manual: Mounts for the lower LATCH anchors
The lower anchors may be used to attach the CRS to the vehicle seat up to a combined child and CRS weight of 65 lb/30 kg when the child is restrained by the internal harnesses.
Note
Properly engage the lower LATCH anchors
Make sure that the lower LATCH anchors have properly engaged and that the child restraint system is resting snugly against the backrest; otherwise, the degree of protection may be reduced.
Position
The corresponding symbol shows
the
mounts for the lower LATCH anchors.
Seats equipped with lower anchors
are
marked with a pair, 2, of LATCH symbols.
It is not recommended to use the inner lower anchors of standard outer LATCH positions to fasten a child restraint system on the middle seat. Use the vehicle seat belt instead for the middle seat.
Before installing LATCH child restraint systems
Pull the belt away from the area of the child restraint system.

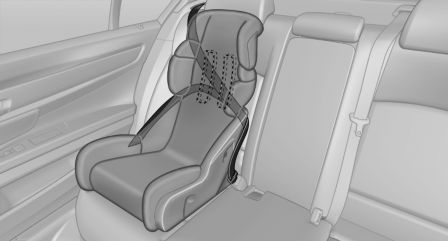

Assembly of LATCH child restraint systems
1. Mount the child restraint system; refer to the user's manual of the system.
2. Ensure that both LATCH anchors are properly connected.
LATCH child restraint system
LATCH: Lower Anchors and Tether for Children.
Note
Follow manufacturer's information for
LATCH child restraint systems
To mount and use the LATCH ...

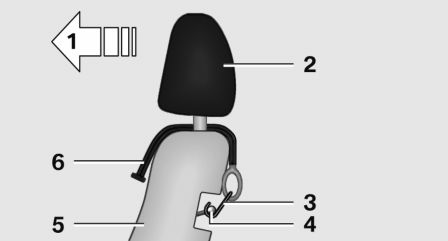

Child restraint fixing system with a
tether strap
Mounting points
The respective symbol shows the
anchor
for the upper retaining strap.
Seats with an upper Top Tether are
marked with this sym ...
