Washer Minimum set: Mechanical tools AM
NOTE: For installing ball joint in rear wheel carrier (bottom camber control arm)
Storage Location
C30
SI number
01 22 11 (753)
Washer AM
NOTE: For counter support when pulling in Only available via complete tool set 33 3 120 = 83 30 0 492 228 - status 29.11.2011
Washer Minimum set: Mechanical tools Mechanical tool
Replaced by: 83300494797
NOTE: (Shim) For removing and installing output shaft in drive flange, front and rear, as well as for removing front wheel bearing unit. Replaced by 33 2 160 (0 494 797)
SI number
01 15 99 (483)
Washer Minimum set: Mechanical tools Mechanical tool
NOTE: For installing rubber mount in rear wheel carrier (bottom trailing arm).
Storage Location
C30
SI number
01 22 11 (753)

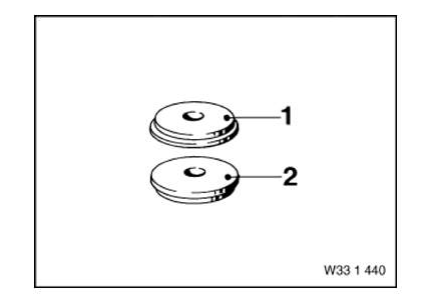

Washer AM
NOTE: (Measuring disc)
Washer AM
NOTE: (Measuring disc)
Washer Minimum set: Mechanical tools AM
NOTE: (draw-in disc)
Storage Location
B49
Washer Minimum set: Mechanical tools AM
NOTE: (pull-out disc)
NOTE: (Installation disc) Liquidation of existing inventory and then available only via complete tool set 33 3 120 = 83 30 0 492 228 - status 29.11.2011

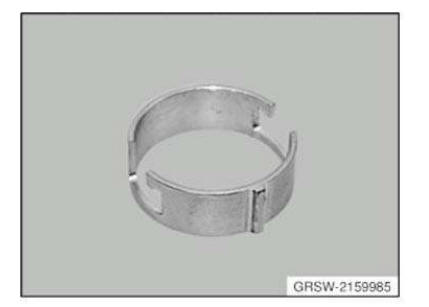

Washer AM
NOTE: (Installation washer) For bearing shell (engine on inside)
Storage Location
Y8
Washer AM
NOTE: (Shape washer) For counter support during installing - model series: E28
Storage Location
C13
Washer Minimum set: Mechanical tools AM
NOTE: Discontinued, can only be ordered using complete tool
Storage Location
B22
SI number
01 01 07 (333)
Washer AM
NOTE: (Shaped washer) For gripping when installing
Washer AM
NOTE: (Washer without thread)
Washer AM
NOTE: (Shaped washer) For removing - model series: E28
Storage Location
C13
Washer AM
NOTE: (Installation washer (2 pieces))
Washer AM

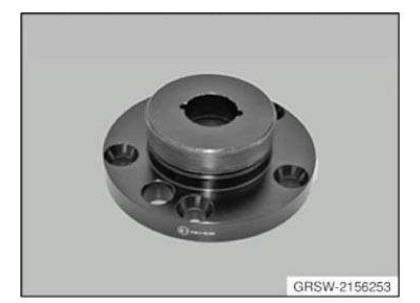

NOTE: Contact disc D1 in connection with adapter kit 1 (BMW), (81 64 2 155 745) and MINI adapter kit (81 64 2 294 517), for removal and installation of wheel bearings, propeller shafts and drive flanges.
SI number
08 06 09 (544)
Washer AM
NOTE: (Disc) Discontinued, only available via complete tool
Storage Location
Y4
Z4
Washer AM
NOTE: (Extractor disc) sale of existing inventory and then available as part of complete tool set 33 3 120 = 83 30 0 492 228 only - as of 29.11.2011
Washer AM
NOTE: (Thrust washer)
Storage Location
Y8
Washer AM
Replaced by: 83300492107
NOTE: (Disc) Replaced by 33 1 311. (0 492 107)
Washer AM
NOTE: (Thrust washer) For installing the front/rear rubber mount, series: E36, E46
Storage Location
B13
Washer Minimum set: Mechanical tools Mechanical tool
NOTE: For removing ball joint in rear wheel carrier (bottom camber arm).
Storage Location
C29
SI number
01 22 11 (753)
Washer AM
NOTE: (Shaped washer) For installing - model series: E28
Storage Location
C13
Washer AM
Replaced by: 83300492107
NOTE: (Disc) Replaced by 33 1 311. (0 492 107)
Washer Minimum set: Mechanical tools Mechanical tool
NOTE: For installing rubber mounts in rear axle support mounting.
Storage Location
C29
SI number
01 22 11 (753)
Washer Minimum set: Mechanical tools AM
NOTE: (pull-out disc)
Storage Location
B49
Washer Minimum set: Mechanical tools AM
NOTE: Discontinued, can only be ordered using complete tool
Storage Location
A22
SI number
01 01 07 (333)
Washer Minimum set: Mechanical tools AM
NOTE: Discontinued, can only be ordered using complete tool
Storage Location
A22
SI number
01 22 06 (307)
Washer Minimum set: Mechanical tools AM
NOTE: (draw-in disc)
Washer Mechanical tool
NOTE: For driving in the radial shaft seal on the input flange
Washer AM
NOTE: (Shaped washer) For pulling out the top rubber mount Series: E30, E36
Washer Minimum set: Mechanical tools Mechanical tool
NOTE: For installing rubber mounts in rear axle support mounting.
Storage Location
C29
SI number
01 22 11 (753)
Washer AM
NOTE: (Measuring disc)
Washer AM
NOTE: Contact disc (M24) E3 in connection with adapter kit 1 (BMW), (81 64 2 155 745) and MINI adapter kit (81 64 2 294 517), for removal and installation of wheel bearings, propeller shafts and drive flanges.
SI number
08 06 09 (544)
Washer AM
NOTE: (Installation disc) for bearing shell (outside drive) discontinued, available as part of set of special tools only
Storage Location
Y8
Washer AM
Washer AM
Washer AM
NOTE: (Measuring disc)
Washer Minimum set: Mechanical tools AM
NOTE: For removing rubber mounts in rear wheel carrier (top wishbone and bottom trailing arm)
Storage Location
C30
SI number
01 22 11 (753)
Washer Minimum set: Mechanical tools AM
NOTE: (draw-in disc)
Storage Location
B49
Washer Minimum set: Mechanical tools AM
NOTE: For installing rubber mount in rear wheel carrier (top wishbone).
Storage Location
C29
SI number
01 22 11 (753)
Washer AM
NOTE: (Shaped washer) For installing the bottom rubber mount Series: E30, E36
Washer AM
Replaced by: 83300492107
NOTE: (Disc) Replaced by 33 1 311. (0 492 107)
Washer AM
NOTE: (Thrust washer)
Washer AM
NOTE: (Washer with thread)
Washer AM
NOTE: (Measuring disc)
Washer Mechanical tool
NOTE: (Shaped disc) For pulling the rubber mount out of the front trailing arm
Storage Location
A14
SI number
01 10 90 (288)
Washer AM
Replaced by: 83300492227
NOTE: (Form disc) Replaced by 33 3 115. (0 492 227)
