BMW X3 Service & Repair Manual: Universal transmission retaining bridge

BMW X3 Service & Repair Manual / Transmission / Transmission in general / Universal transmission retaining bridge

Special tools required:

  • 00 1 450
  • 24 0 200

NOTE:

  • The transmission retaining bridge 24 0 200 is suitable for automatic transmissions

IMPORTANT: Adapters and spindles must be adapted for positive locking to the transmission.

(Risk of injury)

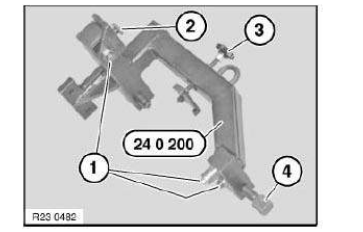

Adapt adapters (1) and spindle with thrust piece (3) to transmission.

Adapt length with slide (2).

Screw in spindle (4).

IMPORTANT: Before mounting on assembly stand 00 1 450, check retaining bridge for secure seating.

Transmission

    Universal bmw transmission take-up

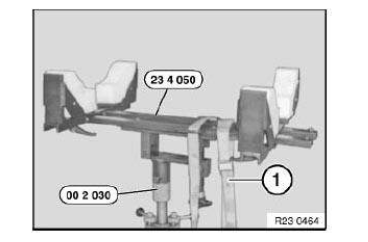

    Special tools required: 00 2 030 23 4 050 NOTE: The universal transmission bracket is introduced for the E60 AWD Suitable for automatic ...
