BMW X3 Service & Repair Manual: Spindle

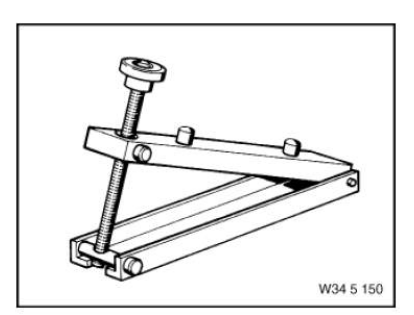

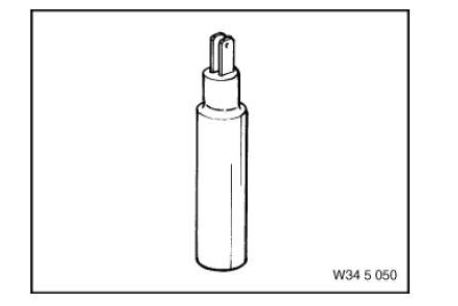

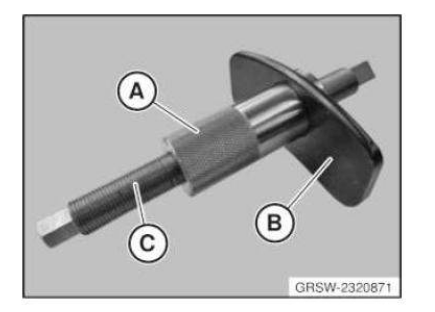

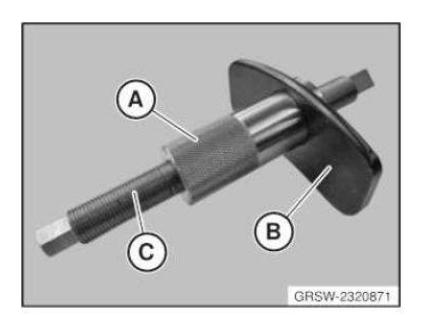

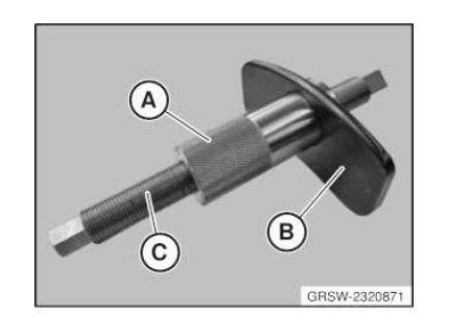

Spindle Minimum set: Mechanical tools AM

NOTE: Spindle is an integral part of resetter 83 30 2 320 871 with identification B.

SI number

01 11 12 (807)

Brakes

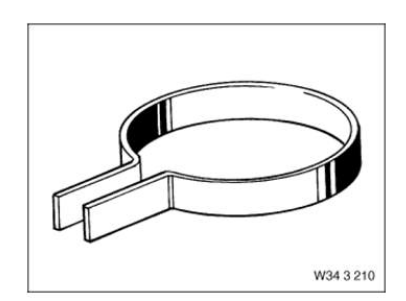

TENSIONING STRAP

Tensioning strap Mechanical tool

NOTE: To change the knock sensor controller on the H31 brake system

Storage Location

Z10

Z9

Brakes

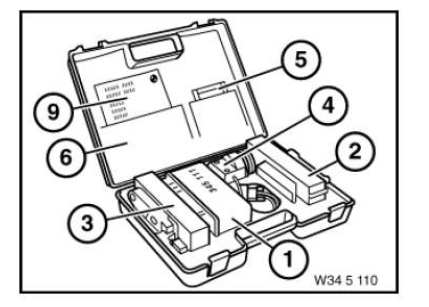

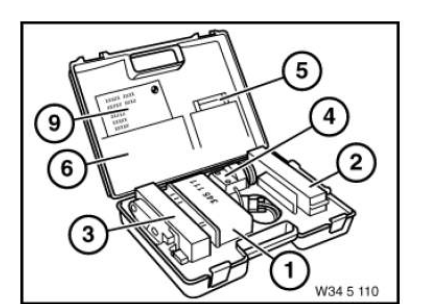

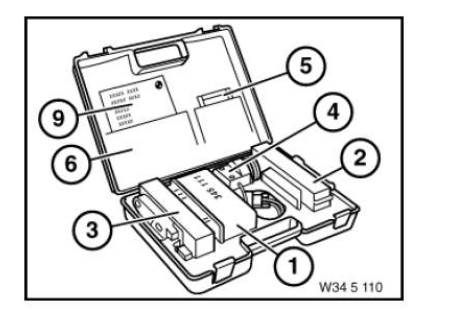

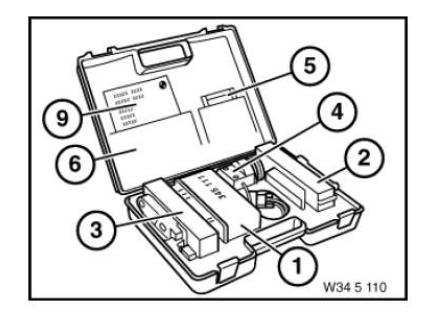

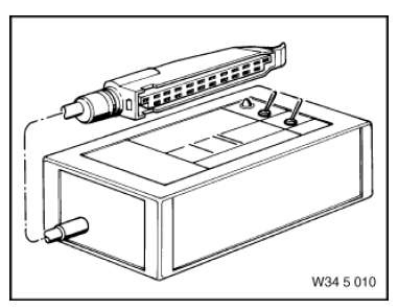

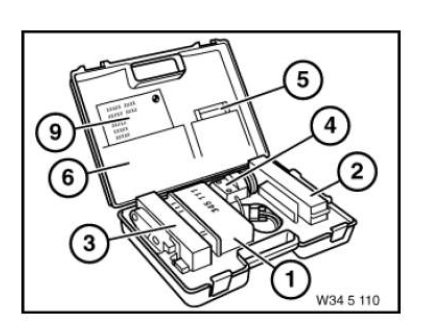

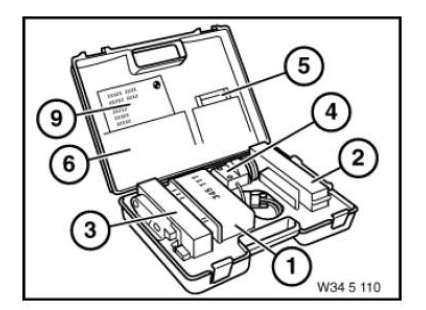

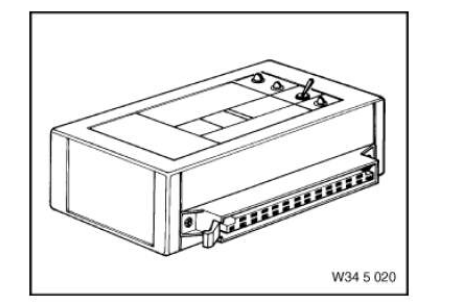

TESTER

Tester AM

NOTE: (Tester) Tester for Anti-lock Brake System with Automatic Stability Control

Storage Location

K 105

SI number

02 05 92 (534)

Consisting of:

1 = Tester

NOTE: (Tester) Control unit test

Brakes

2 = Adapter

NOTE: (Test adapter 35/35- pin)

3 = Adapter

NOTE: (Test adapter 35/55- pin)

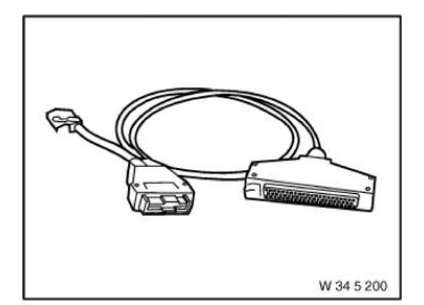

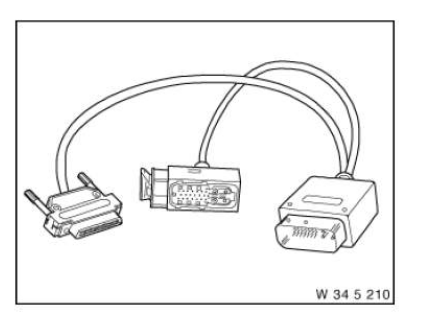

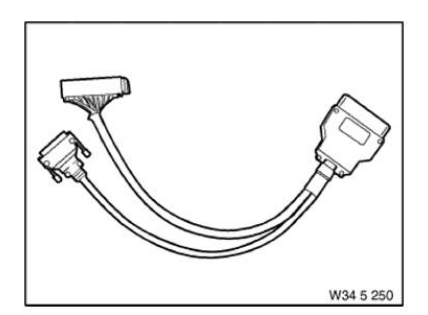

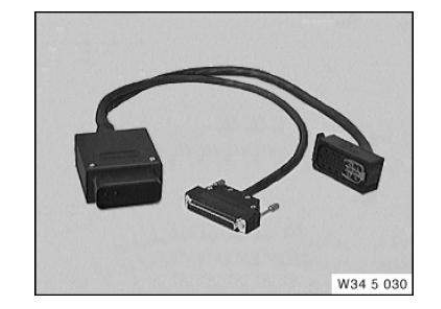

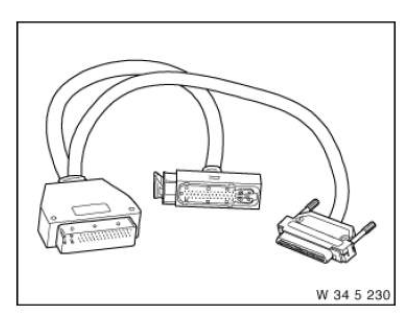

4 = Adapter cable

NOTE: (Adapter cable) Connecting line diagnosis

5 = Disk

NOTE: (Disk) Test disk 3 1/2"

6 = Case

NOTE: Not for individual order

9 = Operating instructions

NOTE: (Tester) Control unit test

Storage Location

K 105

Brakes

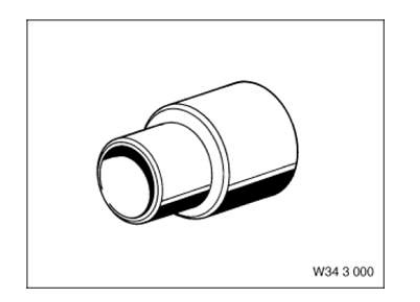

    Shaped part

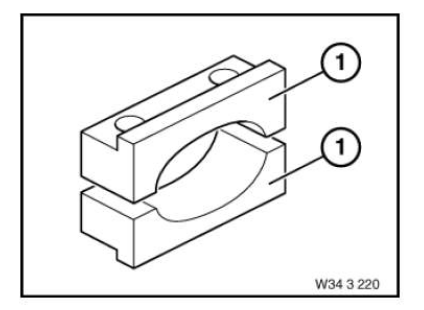

    Shaped part AM NOTE: (Shaped parts) SHELL Shell Mechanical tool NOTE: (bearing shells) 2 pieces For the pressure accumulator of the ...

    Tool

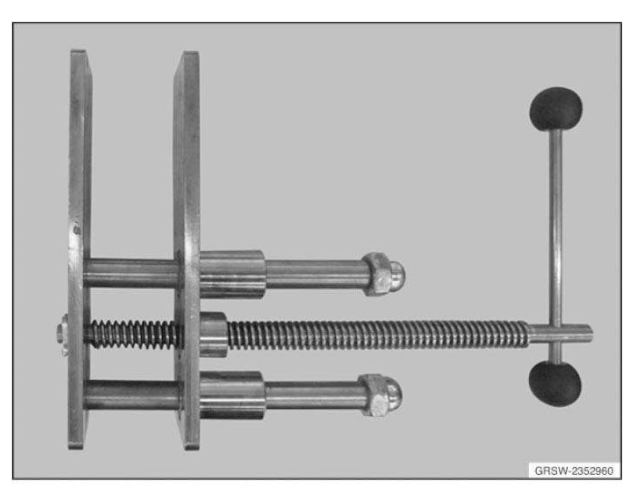

    Tool Mechanical tool NOTE: (Pressing-in tool) for pressing in the shielding caps on both sides in the fixed calliper shafts - brake piston diame ...
