BMW X3 Service & Repair Manual: Replacing wheel bearing for front wheel

BMW X3 Service & Repair Manual / Driveline+Axles / Wheel bearings and stub axle / Replacing wheel bearing for front wheel

Necessary preliminary tasks:

  • Remove FRONT WHEEL .
  • Remove BRAKE DISC .
    • Check brake pad and replace if necessary!

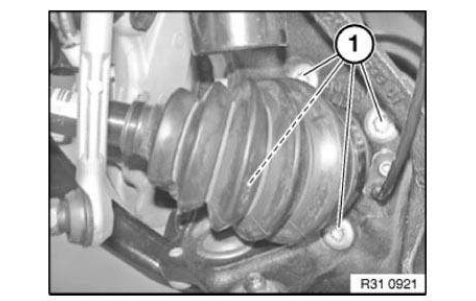

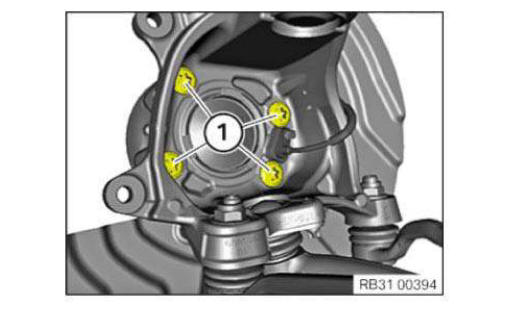

Release screws (1).

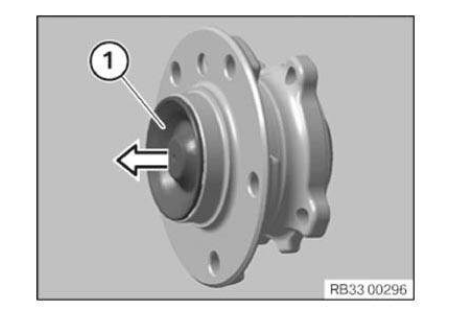

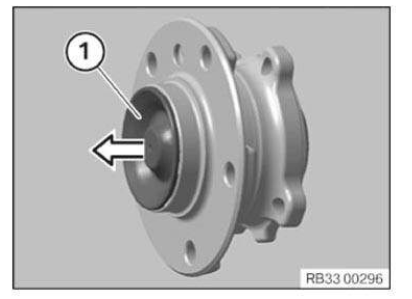

Remove wheel bearing.

Installation note: Replace screws (1).

Driveline+Axles

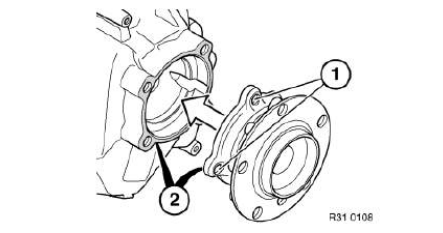

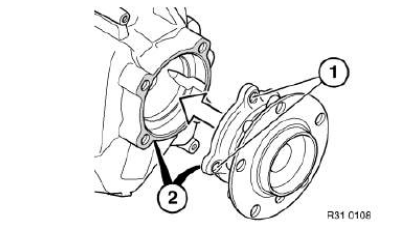

Installation note:

  • Keep contact surface (2) of wheel bearing and swivel bearing clean and free from grease.

Driveline+Axles

    Replacing bearing for front wheel

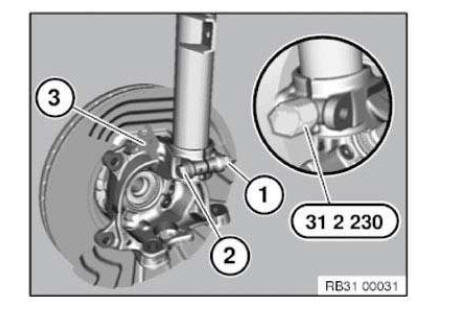

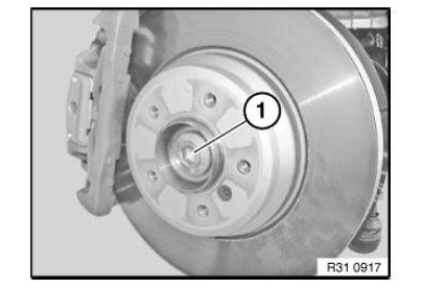

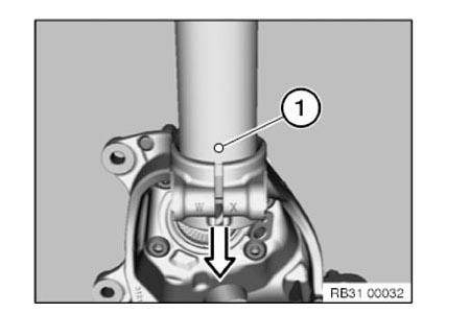

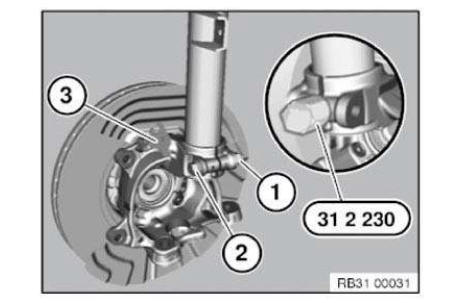

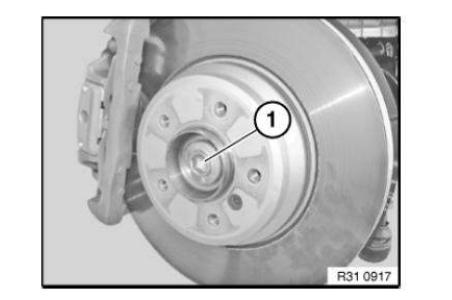

    Necessary preliminary tasks: Remove FRONT WHEEL . If necessary, remove visual protection cap (1). Release collar bolt (1), press brake pedal ...

    Spring strut
    ...
