BMW X3 Service & Repair Manual: Replacing suction pressure sensor on intake plenum (N20, N26)

BMW X3 Service & Repair Manual / Electrical / Electronic switching or control units / Replacing suction pressure sensor on intake plenum (N20, N26)

Necessary preliminary tasks:

  • Read out the fault memory of the DME control unit.
  • Switch off ignition.
  • Partially undo the acoustic cover.

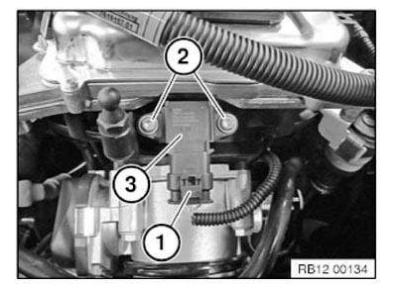

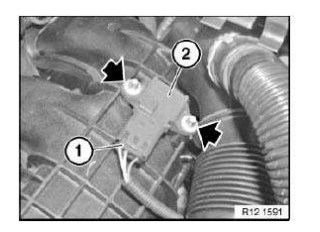

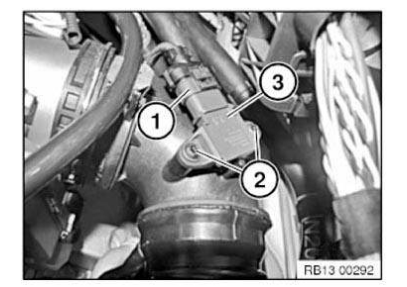

Unlock connector (1) and remove.

Unfasten screws (2).

Pull out the vacuum pressure sensor (3) from the intake plenum.

Electrical

Installation note:

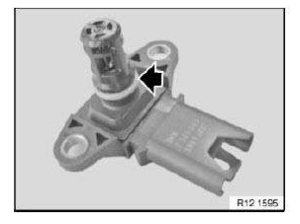

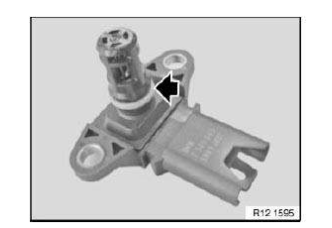

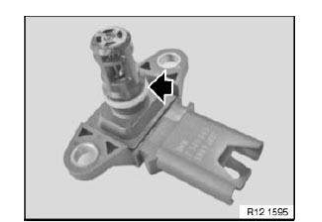

Check sealing ring for damage. Replace damaged sealing ring.

When installing, coat sealing ring with suitable lubricant.

Electrical

NOTE: Reassemble the vehicle.

Check stored fault message.

Delete fault memory.

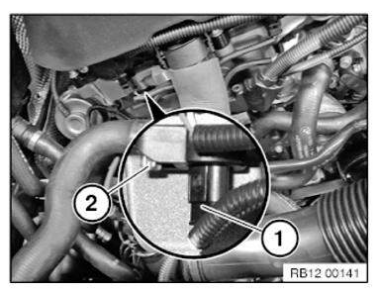

    Replacing pulse sensor on intake camshaft (N55)
