BMW X3 Service & Repair Manual: Screw

Screw AM

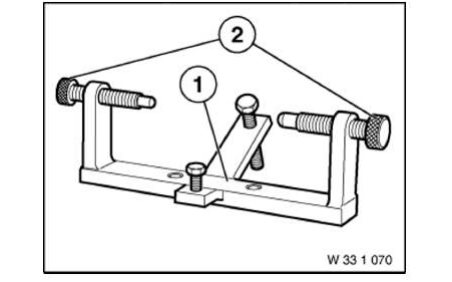

NOTE: (Knurled screws (M16 2 x))

Suspension

Screw AM

NOTE: (countersunk screws M10x30 (3 x)) Transmission: GS6-57DZ, GS6-53BZ (G transmission) GS6-51DZ, GS6-51BZ (H transmission) Deletion, only available via tool set

Storage Location

C17

SI number

01 11 04 (093)

Suspension

Minimum set: Mechanical tools AM

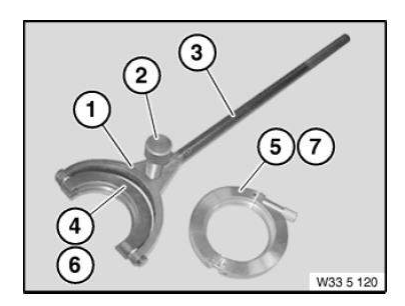

NOTE: (Knurled screw with thrust piece) available as part of set of special tools 33 5 120 -> (83 30 0 495 851) only.

SI number

01 01 07 (333)

Suspension

Screw AM

Suspension

Screw AM

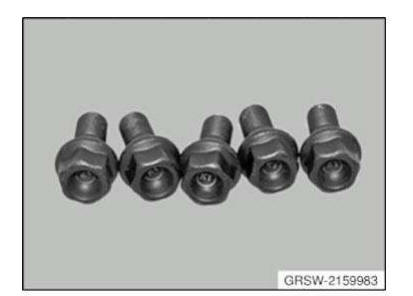

NOTE: Screws K1 (M12x1.5) for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Screw AM

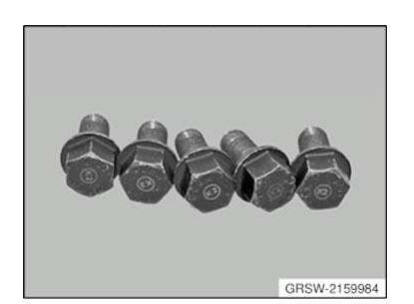

NOTE: Screws K2 (M14x1.5) for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

    Rod
    Rod Minimum set: Mechanical tools AM NOTE: (Guide rod) With thread dog point Rod Minimum set: Mechanical tools AM NOTE: (Guide rod) Rod Minimu ...

    Shaped element
    Shaped element Minimum set: Mechanical tools AM NOTE: (Shaped element) shaped element (bearing shell) available as part of set of special tools 33 ...
