INSTRUCTIONS FOR REMOVING AND INSTALLING EAR CLIPS

Special tools required:

  • 32 1 260

NOTE: The work steps are show on assorted components. Ear clip must always be replaced.

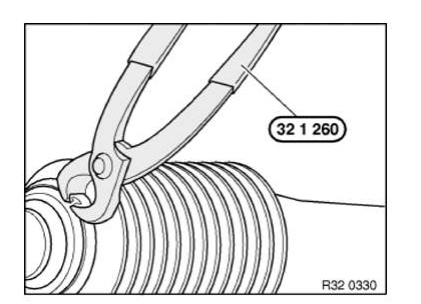

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

Suspension

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

Suspension

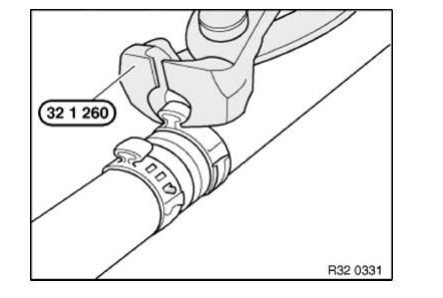

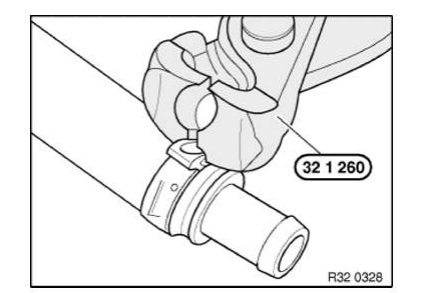

Attach hook fastener and press ear together with special tool 32 1 260.

Suspension

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

Suspension

IMPORTANT: Gap (A) max. 1 mm!

Suspension

ELECTRONIC POWER STEERING

START-UP OF ICM CONTROL UNIT

NOTE: Start-up of ICM control unit must be carried out:

  • After replacement or removal and installation of ICM control unit

Connect vehicle to BMW diagnosis system.

Select and carry out start-up of ICM control unit under Service functions.
