Necessary preliminary tasks:

  • Remove WHEEL.
  • Check WHEEL for lateral and radial runout.
  • Remove Tire from disc wheel.
  • Remove dirt from rim base and rim flange.

IMPORTANT: Disc wheels are not allowed to be repaired!

Mount disc wheel in balancing machine.

Suspension

Use suitable wheel centering element supplied with corresponding balancing machine.

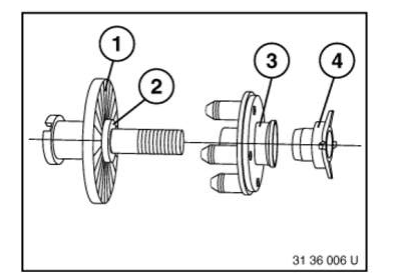

  1. Basic flange
  2. Wheel centering element
  3. Type flange
  4. Clamping nut

Suspension

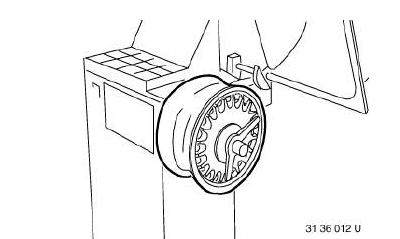

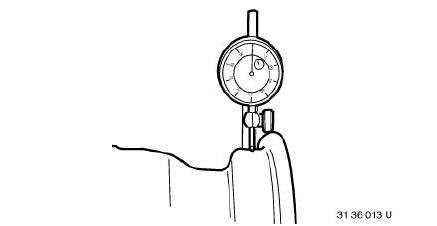

Place dial gauge sensor on rim shoulder.

Turn wheel by hand and measure max. radial runout .

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

Suspension

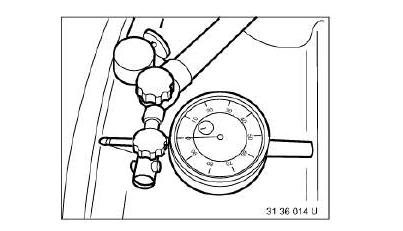

Position sensor on rim flange.

Turn wheel by hand and measure max. lateral runout . Carry out measurement on both rim flanges.

NOTE: Dial gauge must be vertical to rim flange.

Suspension

IMPORTANT: Avoid clamping errors during subsequent installation work.

    Checking one road wheel on balancing machine for lateral and radial runout (wheel removed)
    Special tools required: 36 1 030 36 1 031 36 1 032 36 1 033 36 1 034 36 1 035 36 1 036 Necessary preliminary tasks: Remove WHEE ...

    Notes for repairing aluminum rims
    In general, the economic viability must be checked prior to the repair. It is possible to repair the following damage (applies to cast aluminum rim ...
