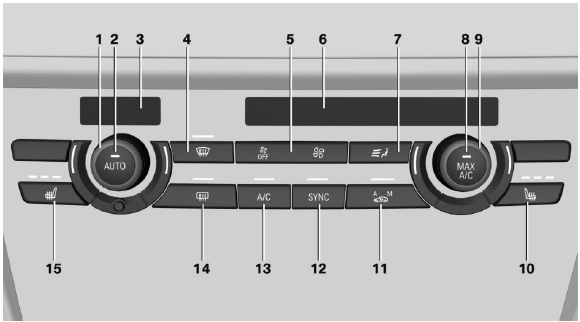

BMW X3. Automatic climate control with enhanced features

  1. Temperature, left
  2. AUTO program
  3. Display
  4. Remove ice and condensation
  5. Air flow, residual heat
  6. Display
  7. Vent settings
  8. Maximum cooling
  9. Temperature, right
  10. Seat heating, right
  11. Recirculated-air mode
  12. SYNC program
  13. Cooling function
  14. Rear window defroster
  15. Seat heating, left
Automatic climate control
Vent settings Air flow AUTO program Interior temperature sensor - always keep clear Recirculated-air mode Temperature Defrosts wi ...

Climate control functions in detail
Temperature Turn the ring to set the desired temperature. The automatic climate control reaches this temperature as quickly as possible, if nee ...
