BMW X3 (F25) Service & Repair Manual: Heating and air conditioning

BMW X3 (F25) Service & Repair Manual / HVAC / Heating and air conditioning

Accessories

Accessories Mechanical tool

NOTE: For detecting leaks in the refrigerant circuit

HVAC

Adapter

Adapter AM

NOTE: (Sealing adapter) For closing off the line for the leakage test for E81, E87, E90, E91, E92, E93 (included in delivery from 02/2007)

SI number

01 09 07 (360)

HVAC

NOTE: (Evaporator test adapter) E85, E86

SI number

01 04 08 (435)

HVAC

NOTE: (Evaporator test adapter) PL2, formerly 64 5 107

SI number

01 04 08 (435)

HVAC

NOTE: (Filler adapter) For sealing pressure line and connection to connecting hose (replaces special tool 64 5 101 from 01/2005)

HVAC

NOTE: (Sealing adapter) Sealing adapter for closing off the line for the leakage test (included in delivery from 01/2005)

HVAC

Adapter Mechanical tool

NOTE: For adjusting the expansion valve

Storage Location

X1

HVAC

Adapter AM

NOTE: (Evaporator test adapter) E60, E61, E63, E64

SI number

01 04 08 (435)

HVAC

Replaced by: 83300495257

NOTE: (Filling adapter) is replaced by 64 5 105 (from 01/2005) Replaced by 64 5 105 (0 495 257)

HVAC

Adapter Minimum set: Mechanical tools AM

NOTE: For pressure test (via pressure drop test) on the evaporator of the air conditioning on all F2x and F3x vehicles.

SI number

08 06 14 (081)

HVAC

Adapter AM

NOTE: Leak-tight adapter) For sealing the line during the evaporator leakage test in the E70 (included in the delivery specification from 02/2007)

SI number

01 09 07 (360)

HVAC

NOTE: (Sealing adapter) For sealing suction connection on compressor

HVAC

NOTE: (Evaporator test adapter) E46, E83, E70, R55, R56 (formerly 64 5 108)

HVAC

NOTE: (Seal adapter) For closing off the intake pipe

HVAC

NOTE: (Climate condenser test adapter)

SI number

01 04 08 (435)

HVAC

ADAPTER CABLE

Adapter cable MP

NOTE: For fault finding in auxiliary heater and its periphery - model year: from 9/95

Storage Location

B117

HVAC

Cap

Cap AM

NOTE: (Sealing cap) For resistance opening on the rear side

HVAC

NOTE: (Sealing cap) For resistance opening on the rear side

HVAC

CLEANING AGENT

Cleaning agent AM

NOTE: For cleaning the evaporator and blower shafts in the vehicle ventilation system

HVAC

DEVICE

Device Mechanical tool

NOTE: For drill out of heating discs. Other: Canada, Japan and USA only

DIAGONAL CUTTING PLIERS

Diagonal cutting pliers AM

Extractor

Extractor Mechanical tool

NOTE: For the thrust washer in the front housing cover of the swash plate compressor

Storage Location

B12

HVAC

Extractor Mechanical tool

NOTE: For belt pulley on the blade cell compressor - air conditioning

Storage Location

B11

SI number

01 05 86 (604)

HVAC

NOTE: For the belt pulley on the swash plate compressor - air conditioning

Storage Location

B11

HVAC

NOTE: For the fitting sleeve in the Seiko compressor

Storage Location

X1

HVAC

FOIL

Foil AM

NOTE: (Covering foil, black (3 pieces))

GUIDE

Guide AM

NOTE: Now only available in set 64 1 250.

SI number

01 26 03 (044)

HOLDER

Holder Mechanical tool

NOTE: (Counter support) For belt pulley on the blade cell and Seiko compressor

Storage Location

B8

C8

SI number

01 05 86 (604)

HVAC

HOLDING SLEEVE

Holding sleeve Mechanical tool

NOTE: (Assembly sleeve) For the sliding ring gasket in the housing cover of the swash plate compressor

Storage Location

A6

HVAC

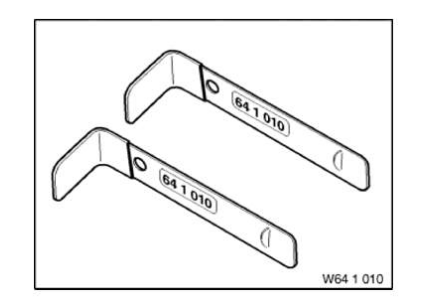

HOOK

Hook Minimum set: Mechanical tools AM

NOTE: (release hook) For releasing and removing fresh air grille. For removing various covers.

Storage Location

A3

B3

SI number

01 15 99 (483)

HVAC

Hose

Hose AM

NOTE: (connecting hose) For connecting the pressure cylinder to the filler adapter

HVAC

NOTE: (Connecting hose) discontinued, available as part of set of special tools only

HVAC

NOTE: (Connecting hose) discontinued, available as part of set of special tools only

HVAC

NOTE: (Connection hose with clamp)

SI number

01 04 08 (435)

HVAC

NOTE: (Connecting hose) discontinued, available as part of set of special tools only

HVAC

LABELS

Labels AM

NOTE: (Official mark, grey (5 pieces))

MANDREL

Mandrel Mechanical tool

NOTE: (fitting mandrel) For the fitting keys in the drive shaft of the swash plate compressor

Storage Location

A6

HVAC

MEASURING DEVICE

Measuring device Mechanical tool

NOTE: (Precision spring balance) For preloading the temperature blending flap for heating and air conditioning

Storage Location

C1

HVAC

PIN WRENCH

Pin wrench Mechanical tool

NOTE: For releasing the belt pulley on the vane-type compressor (slotted nut)

Storage Location

X4

HVAC

Pliers

Pliers Mechanical tool

NOTE: (clamping pliers) For removing and fitting the clutch disc of the air conditioning compressor

Storage Location

Z10

SI number

01 10 91 (443)

HVAC

NOTE: (Special pliers) For pressing through the retaining spring when removing the two heating control shafts for operation of the water valve and air distribution flaps on the heater

Storage Location

Z10

HVAC

PLUG

Plug AM

NOTE: (Climate condenser seal plug)

SI number

01 04 08 (435)

HVAC

RELEASE TOOL

Release tool Mechanical tool

NOTE: For releasing Bowden cables (also E36/5)

Storage Location

B2

SI number

01 04 94 (788)

HVAC

NOTE: (Releasing and attachment aid) For heater controls

Storage Location

A3

SI number

01 02 98 (302)

HVAC

Spray lance

Spray lance AM

NOTE: (Lance with lid)

HVAC

NOTE: (Spray lance (left-hand drive vehicle)) Deletion, only available via tool set

NOTE: (sprayer for evaporator cleaning (left hand drive)) sprayer for cleaning the evaporator

SI number

01 26 03 (044)

Consisting of:

1. Spray lance

NOTE: (Spray lance (left-hand drive vehicle)) Deletion, only available via tool set

HVAC

2. Spray lance

NOTE: (Guide for spray lance (left-hand drive vehicle)) Deletion, only available via tool set

NOTE: Now only available in set 64 1 250.

SI number

01 26 03 (044)

NOTE: (Guide for spray lance (left-hand drive vehicle)) Deletion, only available via tool set

NOTE: (Guide) discontinued, available as part of set of special tools only

HVAC

Spray lance Mechanical tool

NOTE: For cleaning evaporators for right-hand drive vehicles.

SI number

01 19 12 (889)

HVAC

Spray lance AM

NOTE: (Lance with lid)

HVAC

Sprayer

Sprayer AM

NOTE: For cleaning the IHKA and IHKR1 A/C system evaporator

SI number

01 06 91 (398)

Consisting of:

1. Spray lance

NOTE: (Guide) discontinued, available as part of set of special tools only

HVAC

2. Hose

NOTE: (Connecting hose) discontinued, available as part of set of special tools only

Sprayer AM

NOTE: (sprayer for cleaning evaporator (RHD models)) for cleaning air conditioning evaporator

SI number

01 26 03 (044)

Consisting of:

1. Spray lance

NOTE: Now only available in set 64 1 250.

2. Guide

HVAC

NOTE: Now only available in set 64 1 250.

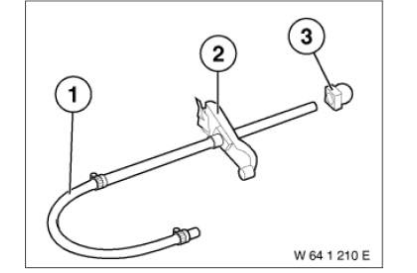

Sprayer AM

NOTE: For cleaning and disinfecting the IHKR A/C system evaporator

SI number

01 07 92 (516)

Consisting of:

2 = Spray lance

NOTE: (Lance with lid)

1 = Hose

NOTE: (Connecting hose) discontinued, available as part of set of special tools only

HVAC

3 = Cap

NOTE: (Sealing cap) For resistance opening on the rear side

Sprayer AM

NOTE: For cleaning and disinfecting the IHKR3 A/C system evaporator

SI number

01 07 92 (516)

Consisting of:

2 = Spray lance

NOTE: (Lance with lid)

1 = Hose

NOTE: (Connecting hose) discontinued, available as part of set of special tools only

HVAC

3 = Cap

NOTE: (Sealing cap) For resistance opening on the rear side

Sprayer AM

NOTE: For cleaning the air conditioning condensers in conjunction with spray lances.

SI number

08 05 12 (812)

HVAC

TEST CABLE

Test cable Mechanical tool

NOTE: For activation of water valves

Storage Location

B116

SI number

02 04 93 (652)

HVAC

TESTER

Tester Mechanical tool

NOTE: (Testing set) For checking the salt content in coolant. Only applies to vehicles with latent-heat storage system. Testing set was supplied as a one-off campaign!

TOOL

Tool AM

NOTE: (Tool set) for removal of resistor R58 from the printed circuit board of the Automatic air conditioning IHKA, one-off campaign for VK-23

Consisting of:

1. Diagonal cutting pliers

2. Foil

NOTE: (Covering foil, black (3 pieces))

3. Labels

NOTE: (Official mark, grey (5 pieces))

WRENCH

Wrench Mechanical tool

NOTE: For opening the service coupling valves for R134a air conditioning lines

HVAC

HEATING AND AIR-CONDITIONING UNIT (EVAPORATOR), SWITCHING ELEMENTS

HEATING AND AIR-CONDITIONING UNIT (EVAPORATOR), SWITCHING ELEMENTS SPECIFICATION

HVAC

HEATING AND AIR-CONDITIONING UNIT (EXPANSION VALVE), SWITCHING ELEMENTS

HEATING AND AIR-CONDITIONING UNIT (EXPANSION VALVE), SWITCHING ELEMENTS SPECIFICATION

HVAC

AIR CONDITIONING, REFRIGERANT AMOUNTS

AIR CONDITIONING, REFRIGERANT AMOUNTS SPECIFICATION

HVAC

AIR CONDITIONING COMPRESSOR

TIGHTENING TORQUE SPECIFICATION - AIR CONDITIONING COMPRESSOR

HVAC

AUXILIARY HEATING

TIGHTENING TORQUE SPECIFICATION - AUXILIARY HEATING

HVAC

REFRIGERANT LINES AND EXPANSION VALVE

TIGHTENING TORQUE SPECIFICATION - REFRIGERANT LINES AND EXPANSION VALVE

HVAC

HVAC
