Carry out ride height adjustment

NOTE: Ride height adjustment must be carried out after the following work:

  • Removal/replacement of ride height sensor or its control rod (only necessary on vehicles with air suspension).
  • Replacement of EHC control unit (F01/F02/F04/F07/F11/F15/F16).
  • Replacement of ICM control unit (Integrated Chassis Management).

Connect diagnosis system.

Switch the ignition on.

Carry out ride height adjustment (menu item: "Service function").

IMPORTANT: Following ride height adjustment, for vehicles with:

  • Run Flat Indicator: initialise RUN FLAT INDICATOR .
  • Tyre Pressure Monitor: RESETTING TYRE PRESSURE MONITOR .

Removing and installing rear left or right spring strut shock absorber (edc)

NOTE: With full spring deflection, the coil spring may touch the gaiter, depending on the design.

This is not a fault!

Suspension

NOTE: Work is identical to REMOVING AND INSTALLING SPRING STRUT !

Replacing rear left or right spring strut shock absorber

Special tools required:

  • 31 3 340
  • 31 3 341
  • 31 3 353
  • 33 0 040

WARNING: Completely read the respective operating instructions before using special tools 31 3 340 ! Strictly adhere to all safety information and instructions in the operating instructions! Failure to observe these safety precautions and instructions increases the risk of serious physical injury, damage to your health and damage to property and equipment!

IMPORTANT:

  1. Prior to each use, check the special tools for defects, modifications and operational reliability.
  2. Damaged/modified special tools must not be used!
  3. No changes or modifications may be made to the special tools!
  4. These special tools are intended solely for the purpose of tightening and relieving cylindrical and tapered suspension springs.
  5. Keep special tools dry, clean and (down to the spindle) free from grease.
  6. Impact screwdrivers are prohibited!
  7. Do not compress coil spring to full extent.

IMPORTANT: When replacing the spring strut, replace the auxiliary damper as well!

Necessary preliminary tasks:

  • Remove REAR SPRING STRUT SHOCK ABSORBER UNIT .

Removing:

Clamp special tool 31 3 341 in vice.

Place special tools 31 3 353 from top on special tool 31 3 341 . Retaining bolts (1) must be felt and heard snapping into place.

Suspension

Clean coil spring to remove all coarse dirt and mount on special tools 31 3 353 .

WARNING: Coils of coil spring must be located completely in recesses of special tools 31 3 353 . Compress coil spring until stress on piston rod is relieved.

Suspension

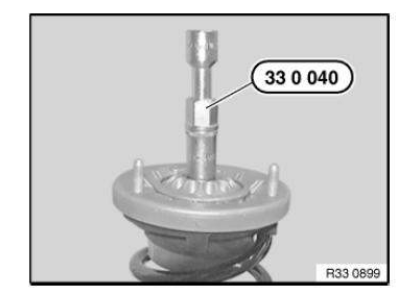

Release nut with special tool 33 0 040 .

Remove spring pad with dust boot.

Remove shock absorber with auxiliary damper, protective tube and spring pad from tensioned coil spring.

Suspension

Impact screwdrivers are prohibited! Risk of damage inside the shock absorber! If necessary, remove auxiliary damper (1) with protective tube and spring pad (2) from spring strut.

Suspension

Relieve tension on coil spring and remove from special tools 31 3 353 .

Suspension

Assembly:

WARNING: Do not compress coil spring to full extent.

Coils of coil spring must be located completely in recesses of special tools 31 3 353 ! Tension coil spring.

Suspension

Check auxiliary spring (1) with protective tube and spring pad (2) for damage, replace if necessary.

Suspension

Insert spring strut into tensioned coil spring.

Suspension

IMPORTANT: Lower end of coil spring must rest on stop of spring pad!

Suspension

Check support bearing (1) and spring pad (2) for damage, replace if necessary.

IMPORTANT: The arrows on support bearing (1) and spring pad (2) must be aligned.

Suspension

Mount support bearing and spring pad on piston rod.

IMPORTANT: Align support bearing and spring pad to end of coil spring.

Suspension

IMPORTANT: The marks (1) must be aligned with the hole in rubber mount (2).

Suspension

Replace nut and tighten down with special tool 33 0 040 .

Relieve tension on coil spring.

Suspension

Impact screwdrivers are prohibited! Risk of damage inside the shock absorber!
