Removing and installing/replacing sport steering wheel

NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary work:

  • Remove AIRBAG UNIT.

Move wheels/sports steering wheel into straight-ahead position.

Unfasten plug connection.

Release screw (1) and remove sports steering wheel.

Installation note: Make sure connecting line(s) is/are correctly laid.

Suspension

Suspension

NOTE: There are clock springs installed with and without a mechanical anti-twist lock.

Clock spring without mechanical anti-twist lock: (recognizable at the inspection glass for the mark of the neutral position)

  • Do not twist the clock spring.
  • Check zero position of clock spring on steering column switch cluster.

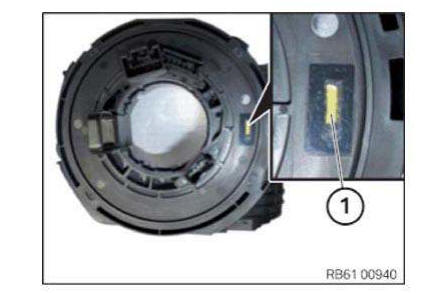

  • Zero position is correct only when yellow mark (1) is clearly visible!

Installation note:

Version with steering wheel heating: Before fitting sports steering wheel on steering column, ensure correct cable routing.

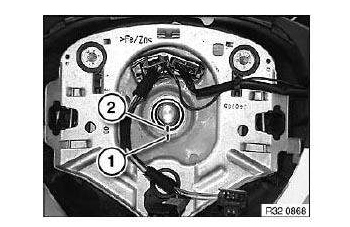

Align sports steering wheel by way of marking (1) to steering column marking (2) and attach.

Suspension

Replacement:

  • Reinstall BOTH SHIFT PADDLES .
  • Modify DESIGN COVER.
  • Modify both SWITCHES ON SPORT STEERING WHEEL .
  • If necessary, modify STEERING WHEEL ELECTRONICS MODULE CONTROL UNIT .

Removing and installing/replacing steering wheel

NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary work:

  • Remove AIRBAG UNIT.

Move wheels/steering wheel into straight-ahead driving position.

Disconnect plug connection.

Release screw (1) and remove steering wheel.

Suspension

Suspension

NOTE: There are clock springs installed with and without a mechanical anti-twist lock.

Clock spring without mechanical anti-twist lock: (recognizable at the inspection glass for the mark of the neutral position)

  • Do not twist the clock spring.
  • Check zero position of clock spring on steering column switch cluster.

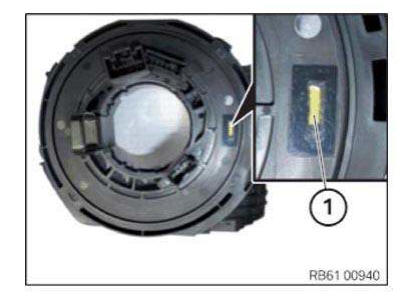

  • Zero position is correct only when yellow mark (1) is clearly visible!

Installation note:

Before fitting steering wheel on steering column, ensure correct cable routing.

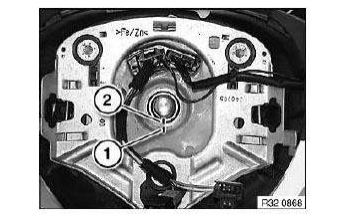

Align steering wheel by way of marking (1) to steering column marking (2) and attach.

Suspension

Replacement:

  • Modify design cover.
  • Modify multifunction steering wheel switch.
  • If necessary, modify steering wheel electronics module control unit.

REPLACING DESIGN COVER FOR SPORT STEERING WHEEL

NOTE: Procedure is described under removing SWITCHES for multifunction steering wheel.

Steering column
...

Steering wheel for airbag
...
