Replace roof outer skin with slide/tilt sunroof

Read contents of BODY, GENERAL.

STRIP DOWN VEHICLE

NOTE: Observe (REPAIR STAGE 2) procedure!

Following new body parts are required:

  • (1) Roof outer skin panel, panorama glass sunroof

Following CONSUMABLES are required:

Body+and+Frame

Body+and+Frame

Removing roof outer skin: Open welded connections in area (1).

Body+and+Frame

Open brazed connections in areas (1) by grinding.

Open welded connections in areas (2).

Body+and+Frame

Release screws (1).

Body+and+Frame

OPEN bonded connections in areas (1).

Take off roof outer skin.

Body+and+Frame

Preparation of new part: Adjust roof outer skin to fit and secure.

In area (1) drill 1 Ø 4.2 mm hole for blind rivet.

Shown on left side, right side identical.

Remove new part again and deburr bore holes.

Body+and+Frame

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Installing roof outer skin: Clean all bonding surfaces on vehicle and on new part with cleaning agent R1.

Body+and+Frame

In areas (1), apply sealant D1 in the same way as in series standard.

Apply adhesive in area (2).

Apply a little more adhesive to node of A-pillar.

NOTE: Excess material at the nodes is later used for spreading to side frame.

Place roof outer skin with helpers evenly and centrally on vehicle, adjust to fit and secure.

Rivet roof outer skin with blind rivets.

Insert screws (1) and tighten down.

Body+and+Frame

Secure roof outer skin with screws and nuts M6 at mounting holes (1) of roof rails.

Body+and+Frame

In area (1) rivet roof outer skin with 9 N4 punch rivets.

Body+and+Frame

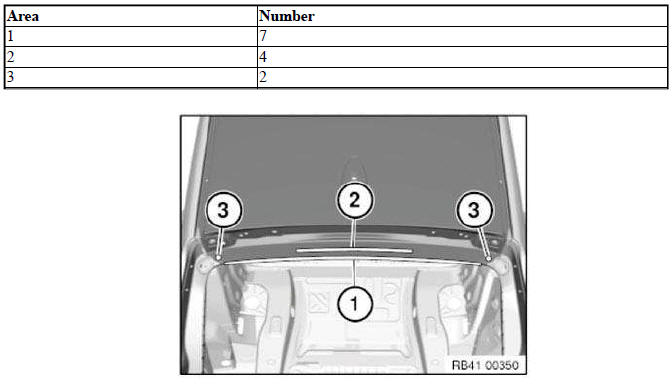

Use N4 punch rivets in areas (1) to (3).

Body+and+Frame

A-pillar nodes: Adapt step (1) between roof outer skin (2) and A-pillar with emerging adhesive. Remove excess adhesive.

IMPORTANT: Do not use any cleaning agents containing solvents.

Do not leave any traces of sharp edges as this could compromise the tightness of the subsequent bond.

Body+and+Frame

Install hinges for tailgate until the adhesive has hardened.

Avoid contact between emerging adhesive and hinges! Remove excess adhesive.

IMPORTANT: Do not use any cleaning agents containing solvents.

Seal adhesive areas and blind rivets with sealant D1.

IMPORTANT: Spread excess adhesive in roof trim strip channel. Mounting surfaces of clips for roof trim strips must not be moistened with adhesive.

Operation is described on the left side. Right side identical.

Graphic similar.

Fit an EMC SCREW after adhesive has hardened in area (1).

In so doing, bear in mind subsequent fitting of roof trim strip/roof rail!

Body+and+Frame

Replacing roof outer skin (normal roof)

Refer to repair instructions ROOF OUTER SKIN WITH SLIDE/TILT SUNROOF for procedure and carry over schematically to the vehicle.

STRIP DOWN VEHICLE

Installing roof outer skin

Apply sealant in areas (1) in the same way as in series standard.

Body+and+Frame

Stripping operations - replacing roof outer skin (normal roof)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

  • Disconnect battery
  • Remove cowl panel cover
  • Remove and install windscreen
  • Remove and install rear lid
  • Remove and install headlining.
  • Remove and install left roof trim strip
  • Remove and install right roof trim strip
  • Remove and install roof aerial
  • Remove both tailgate hinges
  • Partially release tailgate seal.

Stripping operations - replacing roof outer skin (version with panorama glass roof)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

  • Disconnect battery
  • Remove cowl panel cover
  • Remove and install windscreen
  • Remove and install rear lid
  • Remove and install headlining.
  • Remove and install panorama glass roof
  • Remove and install left roof trim strip
  • Remove and install right roof trim strip
  • Remove and install roof aerial
  • Remove both tailgate hinges
  • Slightly release tailgate seal
Side frame and door pillars
...

Dash cowl
