Removing and installing/replacing left or right swivel bearing

Special tools required:

  • 31 2 230

Necessary preliminary tasks:

  • Remove FRONT WHEEL .
  • Detach ANTI-ROLL BAR LINK AT SPRING STRUT.
  • Detach PULSE SENSOR ON SWIVEL BEARING set down with the engine support.
  • Detach TRACK ROD END FROM SWIVEL BEARING .
  • Detach WISHBONE.
  • Detach TRAILING LINK FROM GUIDE JOINT.

IMPORTANT: Secure swivel bearing against falling out.

Slacken nut (1).

Pull out screw (2) with cable clip (3) toward the rear.

Expand swivel bearing with special tool 31 2 230 .

Remove swivel bearing from spring strut.

Installation note: Keep press fit of swivel gearing and spring strut in lower area clean and free from oil and grease.

Screw head must face opposite to the direction of travel.

Replace screw and nut.

Driveline+Axles

IMPORTANT: When replacing spring strut/swivel bearing, the tightening sequence must be adhered to.

Tightening sequence:

  • Tighten using nut.
  • Initial torque 40 Nm
  • First torque 100 Nm, release nut by 120º
  • This ensure the setting properties of the new parts.
  • Tighten with the final torque.

Installation note: Align positioning pin (1) on spring strut to swivel bearing. Slide spring strut into swivel bearing to the limit position.

Driveline+Axles

Replacement:

  • Modify WHEEL BEARING or replace if necessary.
  • Modify GUIDE JOINT or replace if necessary.
  • Modify BRAKE ANCHOR PLATE/PROTECTIVE PLATE or replace if necessary.

After installation:

  • Carry out wheel alignment procedure .

Removing and installing/replacing left or right swivel bearing

Special tools required:

  • 31 2 230

Necessary preliminary tasks:

  • Remove FRONT WHEEL .

If necessary, remove visual protection cap (1).

Driveline+Axles

Release collar bolt (1), press brake pedal to floor for this purpose.

Installation note:

  • Replace collar bolt and compression spring.
  • Note installation position of compression spring.
  • Keep collar bolt and spur toothing of bearing/propeller shaft clean and free of grease

Driveline+Axles

IMPORTANT: Note on installation for spur gearing must be observed without fail!

Installation note:

  • Spur gearing of bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth)!
  • Tighten collar bolt and compression spring by hand.
  • Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.
  • Once a form-fit has been ensured, tighten to final torque.

Driveline+Axles

  • Detach ANTI-ROLL BAR LINK AT SPRING STRUT.
  • Detach PULSE SENSOR ON SWIVEL BEARING set down with the engine support.
  • Detach TRACK ROD END FROM SWIVEL BEARING .
  • Detach WISHBONE.
  • Detach TRAILING LINK FROM GUIDE JOINT.

IMPORTANT: Secure swivel bearing against falling out.

Slacken nut (1).

Pull out screw (2) with cable clip (3) toward the rear.

Expand swivel bearing with special tool 31 2 230 .

Remove swivel bearing from spring strut.

Driveline+Axles

Installation note: Keep press fit of swivel gearing and spring strut in lower area clean and free from oil and grease.

Screw head must face opposite to the direction of travel.

Replace screw and nut.

IMPORTANT: When replacing spring strut/swivel bearing, the tightening sequence must be adhered to.

Tightening sequence:

  • Tighten using nut.
  • Initial torque 40 Nm
  • First torque 100 Nm, release nut by 120º
  • This ensure the setting properties of the new parts.
  • Tighten with the final torque.

Installation note: Align positioning pin (1) on spring strut to swivel bearing. Slide spring strut into swivel bearing to the limit position.

Driveline+Axles

Replacement:

  • Modify WHEEL BEARING or replace if necessary.
  • Modify GUIDE JOINT or replace if necessary.
  • Modify BRAKE ANCHOR PLATE/PROTECTIVE PLATE or replace if necessary.

After installation:

  • Carry out wheel alignment procedure .

Replacing bearing for front wheel

Necessary preliminary tasks:

  • Remove FRONT WHEEL .

If necessary, remove visual protection cap (1).

Driveline+Axles

Release collar bolt (1), press brake pedal to floor for this purpose.

Driveline+Axles

Installation note:

  • Renew collar bolt (1) and compression spring (2).
  • Pay attention to installation position of compression spring (2).
  • Keep collar bolt and spur toothing of bearing/propeller shaft clean and free of grease
  • Follow installation note of the spur gearing.

Driveline+Axles

Remove BRAKE DISC .

NOTE: Check brake pad and replace if necessary!

Press output shaft on swivel bearing to one side slightly and release screws (1).

Remove bearing.

Driveline+Axles

Installation note:

  • Replace screws.
  • Keep contact surface (2) of wheel bearing and swivel bearing clean and free from grease.

Driveline+Axles

IMPORTANT: Note on installation for spur gearing must be observed without fail!

Installation note:

  • Spur gearing of bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth)!
  • Tighten collar bolt and compression spring by hand.
  • Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.
  • Once a form-fit has been ensured, tighten to final torque.

Driveline+Axles

Replacing wheel bearing for front wheel

Necessary preliminary tasks:

  • Remove FRONT WHEEL .
  • Remove BRAKE DISC .
    • Check brake pad and replace if necessary!

Release screws (1).

Remove wheel bearing.

Installation note: Replace screws (1).

Driveline+Axles

Installation note:

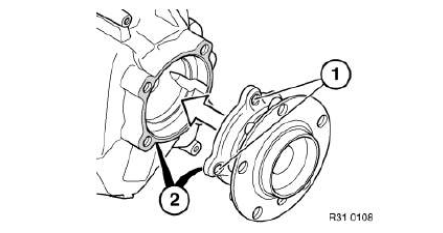

  • Keep contact surface (2) of wheel bearing and swivel bearing clean and free from grease.

Driveline+Axles

Struts with rubber mounts
...

Spring strut
...
