BMW X3 (F25) Service & Repair Manual: Front axle

BMW X3 (F25) Service & Repair Manual / Suspension / Front axle

Adapter

Adapter AM

NOTE: Adapter M4 (Ø 96mm) in connection with adapter kit 2 (BMW), (81642155746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter R7 (M24/Ø 87/95mm) in connection with adapter kit F03 (81 64 2 348 804) for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 02 13 (900)

Suspension

Adapter AM

NOTE: Adapter P5 (/Ø 45/82.5mm) in connection with wheel bearing adapter kit F30 (84mm, no longer in Catalogue) for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 09 12 (873)

Suspension

Adapter AM

NOTE: Adapter N1 (Ø 49mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter R6 (M24/Ø 63/75mm) in connection with adapter kit F30 (84mm wheel bearings) for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 09 12 (873)

Suspension

Adapter AM

NOTE: Adapter N4 (Ø 39mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter Mechanical tool

NOTE: (Adapter) For pulling off the taper roller bearings from the equalisation housing in the front axle differential

Suspension

Adapter AM

NOTE: (take-up adapter for bore holes (2 x))

SI number

01 24 06 (309)

Suspension

Adapter AM

NOTE: Adapter M2 (Ø 88mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter M8 for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter P3 (Ø 39/72mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter R3 (M24/Ø 69/79mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter R8 (M24/Ø 74/83mm) in connection with adapter kit F03 (81642348804) for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 02 13 (900)

Suspension

Adapter AM

NOTE: Adapter P6 (/Ø 51/89mm) in connection with adapter kit F03 (81 64 2 348 804) for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 02 13 (900)

Suspension

Adapter AM

NOTE: Adapter P1 (Ø 45/85mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter P4 (Ø 42/75 mm) in combination with adapter kit 2 BMW (81 64 2 155 746) for removing and installing wheel bearings, output shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter Z1 to attach torque wrench. Used in connection with hydraulic cylinder, (81642156246), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 04 12 (797)

Suspension

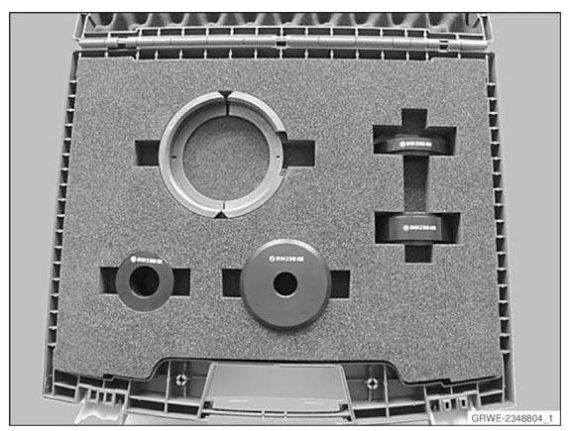

Adapter AM

NOTE: Adapter set F03 as a supplement to the hydraulic tool for removal and installation of wheel bearings, output shafts and drive flanges.

SI number

08 02 13 (900)

Consisting of:

Suspension

  1. 2348430

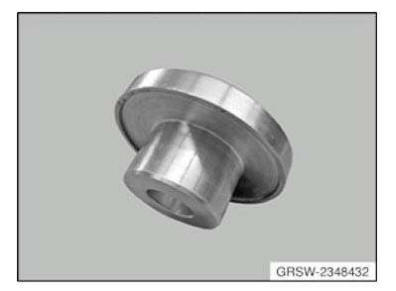

  2. 2348432
  3. 2348434
  4. 2348436
  5. 2348431

Adapter AM

NOTE: Adapter R4 (M24/Ø 64/75mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter R2 (M24 tapered) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter M6 (Ø 102/113mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: (take-up adapter U-section (2 x))

SI number

01 24 06 (309)

Suspension

Adapter AM

NOTE: Adapter N5 (/Ø 51mm) in connection with adapter kit F03 (81642348804) for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 02 13 (900)

Suspension

Adapter AM

NOTE: Adapter H2 (tooth finder) in combination with adapter kit 1 BMW (81 64 2 155 745) for removal and installation of wheel bearings, output shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

NOTE: Adapter N2 (Ø 45mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter P2 (Ø 49/90mm) in connection with adapter kit 2 (BMW) and adapter kit 3 RR for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter B1 in connection with adapter kit 1 (BMW), (81 64 2 155 745) and MINI adapter kit (81 64 2 294 517), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter R5 (M24/Ø 59/70mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter N3 (Ø 42mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter M5 (Ø 90mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter M1 (Ø 100/101mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: (take-up adapter for bore holes (2 x))

SI number

01 24 06 (309)

Suspension

Adapter AM

NOTE: Adapter M3 (Ø 102mm) for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 06 09 (544)

Suspension

NOTE: Adapter G3 (M27x1.5/M20) in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter Minimum set: Mechanical tools AM

NOTE: (Adapter feet) Series: E46

Storage Location

A7

Suspension

Adapter AM

NOTE: (take-up adapter (2 x))

SI number

01 24 06 (309)

Suspension

Adapter AM

NOTE: Adapter E2 (M24) in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

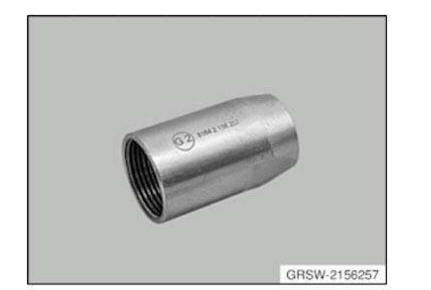

NOTE: Adapter G2 (M24x1.5/M20) in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter for workshop jack for screwing-on at existing 120 mm hole-circle diameter and new 112 mm hole-circle diameter on wheel hub. Contour-graphic silhouette foil is included in delivery specification.

Storage Location

B74

A74

SI number

01 21 14 (110)

Suspension

Adapter AM

NOTE: Adapter R1 (M24/Ø 77/82mm) in connection with adapter kit 2 (BMW), (81 64 2 155 746), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Adapter AM

NOTE: Adapter G1 (M22x1.5/M20) in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Basic body

Basic body AM

NOTE: (Basic body) No longer available separately, only via special tool set 31 5 250 (83 30 0 495 567)

SI number

01 24 06 (309)

Suspension

Basic body AM

Suspension

Basic body AM

Suspension

BEARING

Bearing AM

NOTE: (Thrust bearing)

Suspension

BELT

Belt AM

NOTE: (Tensioning strap)

SI number

01 24 06 (309)

Suspension

Bolt

Bolt AM

Replaced by: 83300492053

NOTE: Replaced by 32 3 090. (0 492 053)

Suspension

Bolt Mechanical tool

NOTE: (drive pin) For radial gears in the front axle differential for checking the coefficient of friction

Suspension

BRIDGE

Bridge Minimum set: Mechanical tools AM

NOTE: (Support bridge) All-wheel drive vehicles, series: E30, E36, E46, E85 Discontinued, only available via complete tool

Storage Location

B7

Suspension

Bridge AM

NOTE: (Measuring bridge)

Suspension

Bush

Bush AM

NOTE: For installing the rubber mount in the front axle support - series: E12

Suspension

Bush AM

NOTE: (Bush) For installing the rubber mount in the front axle support and thrust piece, for removing and installing the rubber mount in the wishbones

Suspension

Bush Mechanical tool

NOTE: (impact bush) For fitting the radial sealing ring to the drive flange of the front axle differential

Storage Location

X7

SI number

01 04 93 (664)

Suspension

Bush AM

NOTE: (Bush) Deletion, only available via tool set

Suspension

Bush AM

NOTE: (Bush) For removing the rubber mount from the front axle support, for removing and installing the rubber mount in the wishbones and for press-fitting the taper roller bearing of the rear axle differential housing

Suspension

NOTE: (Slip bush) For installing the rubber mount in the front axle support

Suspension

NOTE: (Pressure bush)

Suspension

NOTE: (Threaded bush)

Suspension

CLIP

Clip Mechanical tool

NOTE: (mounting fixture) For the front axle differential

Suspension

Device

Device AM

NOTE: For drawing spring strut into swivel bearing seat.

Storage Location

B72

SI number

01 13 07 (387)

Consisting of:

1. Basic body

Suspension

2. Spindle

NOTE: (Spindle M10 with fixture) discontinued, available as part of set of special tools only

3. Nut

NOTE: (Nut with bearing) Can no longer be ordered separately. Only available as part of set 31 2 120 = 83 30 0 491 909.

Device AM

NOTE: For determining the installation dimension at the bevel drive pinion in the front axle differential

Consisting of:

1. Bridge

NOTE: (Measuring bridge)

2. Washer

NOTE: (Measuring disc 7 mm)

Suspension

Device Mechanical tool

NOTE: (Device) to tension the spring struts when removing and installing - not required for 31 3 120

Suspension

Device Mechanical tool

NOTE: For removing spring strut guide joints from left or right steering stub (interchangeable) (E30/C)

Storage Location

Y5

Suspension

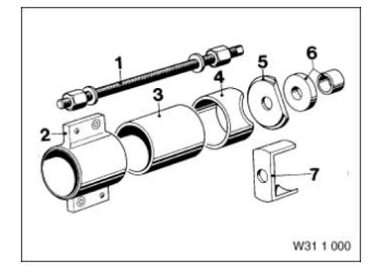

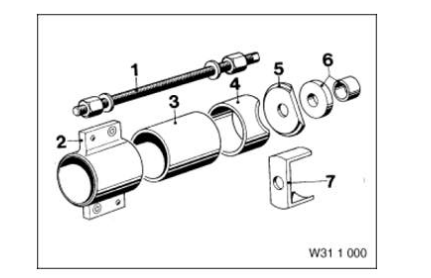

Device AM

NOTE: For removing and installing the rubber mount in the front axle support and in the wishbones and for press-fitting the taper roller bearing onto the differential case of the rear axle differential.

Storage Location

Z5

Suspension

Consisting of:

1. Spindle

NOTE: With 2 nuts and 2 washers

2. Bush

NOTE: (Slip bush) For installing the rubber mount in the front axle support

3. Bush

NOTE: (Bush) For removing the rubber mount from the front axle support, for removing and installing the rubber mount in the wishbones and for press - fitting the taper roller bearing of the rear axle differential housing

4. Pipe

NOTE: (Support tube) For installing the rubber mount in the front axle support - series: E12

5. Washer

NOTE: (Flanged washer) For centring of threaded spindle and as a support disc for removing and installing the rubber mount in the front axle support and in the wishbones - series: E12

6. Synchronising key

NOTE: For removing and installing the rubber mount in the front axle support - series: E12

7. Bush

NOTE: For installing the rubber mount in the front axle support - series: E12

8. Bush

NOTE: (Bush) For installing the rubber mount in the front axle support and thrust piece, for removing and installing the rubber mount in the wishbones

9. Bush

NOTE: (Bush) Deletion, only available via tool set

Device Mechanical tool

NOTE: For pressing off and applying the wheel hub sealing caps - model year: up to 82

Suspension

Device Minimum set: Mechanical tools AM

NOTE: For removing and installing rubber mount in front wishbone

Storage Location

A7

Consisting of:

8 = Adapter

NOTE: (Adapter feet) Series: E46

1 = Plate

NOTE: Series: E30, E36, E46, E85

2 = Synchronising key

NOTE: Series: E30, E36, E46, E85

3 = Holder

NOTE: (Counter support) Series: E30, E36, E46, E85

4 = Spindle

NOTE: Spindle (1 piece) series: E30, E36, E46, E85

5 = Bridge

NOTE: (Support bridge) All-wheel drive vehicles, series: E30, E36, E46, E85 Discontinued, only available via complete tool

Suspension

6 = Holder

NOTE: (Counter support, diameter 79 mm) For mounting the rubber mount on the wishbone, series: E46 Discontinued, only available via complete tool 0 491 918.

7 = Synchronising key

NOTE: (Synchronizing key, diameter 79 mm) For mounting the rubber mount on the wishbone, series: E46

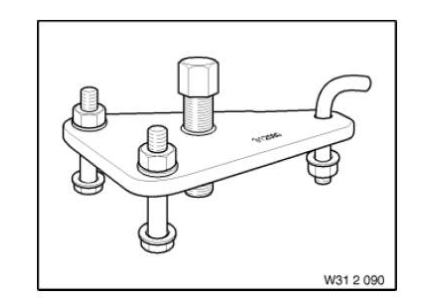

Device AM

Replaced by: 83300492053

NOTE: For pressing the wishbone off the spring strut/Replaced by 32 3 090 (0 492 053)

Consisting of:

1. Spindle

NOTE: Replaced by 32 3 090. (0 492 053)

2. Bolt

NOTE: Replaced by 32 3 090. (0 492 053)

Suspension

Device AM

Replaced by: 83300492053

NOTE: For pressing the drive flange out of the wheel bearing Replaced by 33 4 200. (0 492 053)

Consisting of:

1. Synchronising key

NOTE: Discontinuation and replaced by 33 4 200 (0 492 053)

2. Plate

NOTE: Discontinuation and replaced by 33 4 200 (0 492 053)

3. Spindle

NOTE: Discontinuation and replaced by 33 4 200 (0 492 053)

Suspension

Device Mechanical tool

NOTE: For pressing off the wishbones from the spring strut

SI number

01 04 92 (487)

Suspension

Device AM

NOTE: For removing and installing wheel control joints

SI number

01 09 96 (094)

Consisting of:

1. Basic body

2. Bush

NOTE: (Threaded bush)

Suspension

3. Spindle

4. Bearing

NOTE: (Thrust bearing)

5. Synchronising key

NOTE: (Thrust piece) For removing

6. Synchronising key

NOTE: For removing

7. Synchronising key

NOTE: For installing

8. Pipe

NOTE: (Guide tube) For installing

Device Mechanical tool

NOTE: (Extractor tool) For pressing off the leading link from the track rod arm

Storage Location

Y6

SI number

01 06 88 (964)

Suspension

Device AM

NOTE: For installing the wheel bearing unit at the front

Storage Location

Y9

Consisting of:

1. Spindle

NOTE: With guide sleeve Discontinued, only available via complete tool

2. Bush

NOTE: (Pressure bush)

3. Nut

NOTE: (Nut with bearing) Can no longer be ordered separately. Only available as part of set 31 2 120 = 83 30 0 491 909.

Suspension

Device AM

NOTE: Device A1 in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Device Mechanical tool

NOTE: For pulling out the trailing links, left and right wishbones and leading links

Storage Location

X5

Suspension

Device Mechanical tool

Replaced by: 83300492436

NOTE: For pressing the drive flange out of the front wheel bearing Replaced by 33 4 200. (0 492 436)

Suspension

EXTENSION

Extension AM

NOTE: Extension lever (extension) to loosen and tighten the screw connections on wishbone and tension strut in conjunction with special tools set 81642185817 (ring spanner).

SI number

08 04 10 (656)

Suspension

Extractor

Extractor Mechanical tool

NOTE: For removing the track rod from the front axle

Storage Location

C41

SI number

01 03 00 (554)

Suspension

Extractor Minimum set: Mechanical tools AM

NOTE: For removing the output shafts from the front axle differential --> E46/16

Storage Location

A41

B41

SI number

01 07 00 (576)

Suspension

Fixture

Fixture AM

In conjunction with: UNIVERSAL HYDRAULIC LIFTING EQUIPMENT 81222219012

NOTE: (universal axle take-up) For accommodating all front and rear axles when removing and installing.

SI number

01 24 06 (309)

Suspension

Consisting of:

1. Basic body

NOTE: (Basic body) No longer available separately, only via special tool set 31 5 250 (83 30 0 495 567)

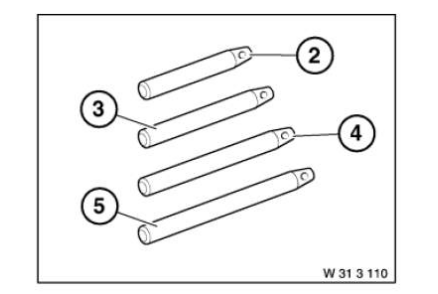

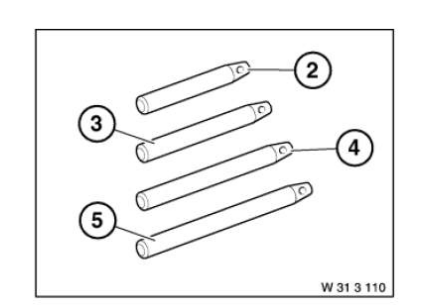

2. Support

NOTE: (Telescope supports) 4 pieces, no longer available separately, only via special tool set 31 5 250 (83 30 0 495 567)

3. Adapter

NOTE: (take-up adapter U-section (2 x))

4. Adapter

NOTE: (take-up adapter (2 x))

5. Adapter

NOTE: (take-up adapter for bore holes (2 x))

6. Adapter

NOTE: (take-up adapter for bore holes (2 x))

7. Belt

NOTE: (Tensioning strap)

Fixture Mechanical tool

NOTE: For securing wheel hub when removing and installing spring strut.

Storage Location

A19

SI number

01 23 05 (224)

Suspension

Fork

Fork Mechanical tool

NOTE: (Press-off fork) For pressing the output shaft off of the front axle differential (all-wheel drive vehicles)

SI number

01 17 05 (212)

Suspension

Fork AM

NOTE: (Separating fork)

Suspension

Fork AM

NOTE: (Separating fork) for separating the conical seat at the wheel guide joint from the wheel carrier - delivered for campaign due to warranty/introduced in 6/96 as set of special tools

SI number

01 09 96 (094)

Consisting of:

Suspension

1. Fork

NOTE: (Separating fork)

2. Guard

NOTE: (Protective gloves)

Gauge

Gauge AM

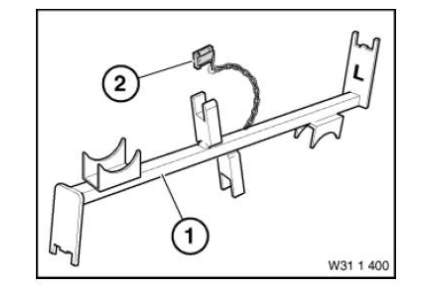

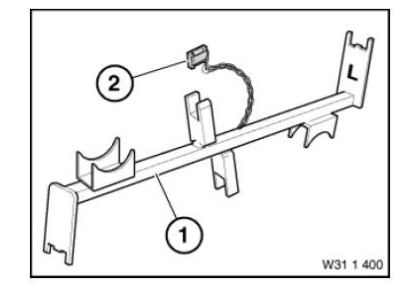

NOTE: (test gauge) For checking the trailing link for distortion when repairing accident damage

SI number

01 23 97 (246)

Consisting of:

1. Gauge

NOTE: (test gauge) For right and left-hand trailing link

2. Shaped part

NOTE: (shaped part) For trailing links without date stamp, up to model year 5/96

Suspension

Gauge AM

NOTE: (test gauge) For right and left-hand trailing link

Suspension

Gauge Minimum set: Mechanical tools AM

NOTE: For positioning the support bearing.

SI number

01 19 10 (674)

Suspension

GUARD

Guard AM

NOTE: (Protective gloves)

Suspension

Holder

Holder Minimum set: Mechanical tools AM

NOTE: (Counter support) Series: E30, E36, E46, E85

Storage Location

A7

Suspension

Holder AM

Replaced by: 83302213041

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 041

SI number

01 16 11 (738)

Suspension

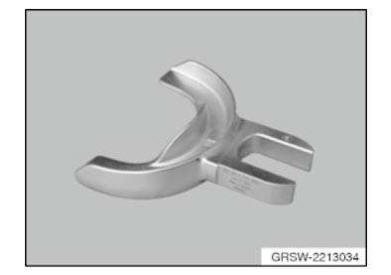

Holder AM

Replaced by: 83302213034

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 034

SI number

01 16 11 (738)

Suspension

Holder AM

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 326 - Series: E38 rear, E39 Saloon rear

Suspension

Holder AM

Replaced by: 83302213039

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 039

SI number

01 16 11 (738)

Suspension

Holder AM

Replaced by: 83300493560

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 127 - Model series: E32, E34 Touring, E36 Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Holder AM

Replaced by: 83300493560

NOTE: (Spring retainer) With protective insert 31 3 128 - model series: E46 Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Holder Minimum set: Mechanical tools AM

NOTE: (Counter support, diameter 79 mm) For mounting the rubber mount on the wishbone, series: E46 Discontinued, only available via complete tool 0 491 918.

Storage Location

B7

Suspension

Holder AM

Replaced by: 83302213026

NOTE: Clamping plate (1 piece), available under new order number 83 30 2 213 026 as of July 2011

SI number

01 16 11 (738)

Suspension

Holder AM

Replaced by: 83302213024

NOTE: Clamping plate (1 piece), available under new order number 83 30 2 213 024 as of July 2011

SI number

01 16 11 (738)

Suspension

Holder AM

NOTE: (Spring retainer) With protective insert 31 3 332 - Series: E46

Suspension

Holder AM

Replaced by: 83300493560

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 126 - model series: E38 rear, E39 Saloon rear Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Holder AM

Replaced by: 83302213029

NOTE: Clamping plate (1 piece) As of 08/2011, available under new item number 83 30 2 213 029

SI number

01 16 11 (738)

Suspension

Holder AM

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 328 - Series: E31, E38, E39 front high (2x) and basis (1x)/model: Z3, Z3coupe

Suspension

Holder AM

Replaced by: 83300493560

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 128 - Model series: E31, E38, E39 front high (2x) and basic version (1x) Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Holder AM

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 327 - Series: E32, E34, E36

Suspension

Holder AM

Replaced by: 83302213036

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 036

SI number

01 16 11 (738)

Suspension

Holder AM

Replaced by: 83302250167

NOTE: (Spring retainer) As of 08/2011, delivery under new item number 83 30 2 250167= completely new set with newly defined content

Storage Location

Individual

SI number

01 16 11 (738)

Suspension

Consisting of:

7 = Holder

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 036

8 = Ring

NOTE: (Insertion ring) As of 08/2011, available under new item number 83 30 2 213 033

9 = Ring

NOTE: (Spring retainer ring) As of 08/2011, available under new item number 83 30 2 213 038

10 = Holder

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 039

11 = Holder

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 041

1 = Holder

NOTE: Clamping plate (1 piece), available under new order number 83 30 2 213 024 as of July 2011

2 = Holder

NOTE: Clamping plate (1 piece), available under new order number 83 30 2 213 026 as of July 2011

3 = Holder

NOTE: Clamping plate (1 piece) As of 08/2011, available under new item number 83 30 2 213 029

4 = Ring

NOTE: (Spring retainer ring) As of 08/2011, available under new item number 83 30 2 213 031

5 = Holder

NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 034

6 = Ring

NOTE: (Centering ring) As of 08/2011, available under new item number 83 30 2 213 032

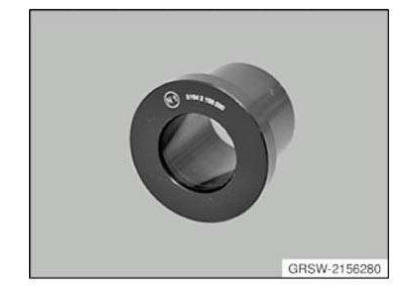

Holding sleeve

Holding sleeve AM

NOTE: (Pressure sleeve) For gripping the wishbones and for removing and installing the silence blocks in the leading link. Discontinued, can only be ordered using complete tool

Suspension

Holding sleeve Minimum set: Mechanical tools AM

Replaced by: 83300491916

NOTE: (Pressure sleeve) For counter-holding/model series: E30 Replaced by 31 2 133.

(0 491 916)

Storage Location

B13

Suspension

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Push sleeve) For removing and installing. Series: E53, E83

Storage Location

B13

Suspension

Holding sleeve AM

NOTE: (Pressure sleeve) for counterholding, discontinued, available as part of set of special tools only

Suspension

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Pressure sleeves) For removing and installing the rubber mount in the trailing link of the front axle

Storage Location

B13

SI number

01 12 95 (992)

Suspension

Consisting of:

1. Holding sleeve

NOTE: (Pressure sleeve) for counterholding, discontinued, available as part of set of special tools only

2. Holding sleeve

NOTE: (Pressure sleeve) For removing and installing

Holding sleeve AM

Replaced by: 83300493555

NOTE: (Centring sleeve) Internal thread M18x1.5 Replaced by 31 3 340 (0 493 555)

Suspension

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Pressure sleeve) For pulling out and in/model series: E30 All-wheel drive vehicle, E34, E36, E46 Can no longer be ordered separately. Only available as part of set 31 2 130 = 83 30 0 491 913.

Storage Location

B13

Suspension

Holding sleeve AM

Replaced by: 83300493555

NOTE: (Centring sleeve) Internal thread M12x1.5 Replaced by 31 3 340 (0 493 555)

Suspension

Holding sleeve AM

Replaced by: 83300493747

NOTE: (Pressure sleeve) For gripping the wishbones and for removing and installing the silence blocks in the leading link. Replaced by 31 1 054. (0 493 747)

Suspension

Holding sleeve AM

NOTE: Sleeve C1 in connection with adapter kit 1 (BMW), (81 64 2 155 745) and MINI adapter kit (81 64 2 294 517), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Push sleeve) As counter support when removing and installing. Series: E38, E39, E83 For removing and installing rubber mounts in wishbones/Model series: E46/5

Storage Location

B13

Suspension

Holding sleeve AM

Replaced by: 83300493555

NOTE: (Centring sleeve) Internal thread M10x1 Replaced by 31 3 340 (0 493 555)

Suspension

Holding sleeve AM

Replaced by: 83300493555

NOTE: (Centring sleeve set for piston rod/shock absorber) Spring tensioner 31 3 110/111 for tensioning coil springs/Replaced by 31 3 340 (0 493 555)

Consisting of:

1. Spring tensioner

NOTE: Replaced by 31 3 340 (0 493 555)

Suspension

2. Holding sleeve

NOTE: (Centring sleeve) Replaced by 31 3 340 (0 493 555)

3. Holding sleeve

NOTE: (Centring sleeve) Internal thread M18x1.5 Replaced by 31 3 340 (0 493 555)

4. Holding sleeve

NOTE: (Centring sleeve) Internal thread M10x1 Replaced by 31 3 340 (0 493 555)

5. Holding sleeve

NOTE: (Centring sleeve) Internal thread M12x1.5 Replaced by 31 3 340 (0 493 555)

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Pressure sleeve) For removing and installing

Suspension

Holding sleeve AM

NOTE: (Pressure sleeve) for removal discontinued, available as part of set of special tools only

Suspension

Holding sleeve AM

NOTE: (pressure sleeve) For gripping the leading link. Series: E24, E28, E32, E34 Discontinued, only available via complete tool

Suspension

Holding sleeve AM

NOTE: Sleeve H1 (removing gear finding component) in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Pressure sleeve) for counterholding, discontinued, available as part of set of special tools only

Suspension

Holding sleeve AM

Replaced by: 83300493555

NOTE: (Centring sleeve) Replaced by 31 3 340 (0 493 555)

Suspension

Holding sleeve AM

NOTE: (Pressure sleeve) for installing discontinued, available as part of set of special tools only

Suspension

Holding sleeve Minimum set: Mechanical tools AM

Replaced by: 83300493596

NOTE: (Pressure sleeve) For pulling out and in/model series: E38 Replaced by 31 2 263. (0 493 596)

Suspension

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Pressure sleeve) For pulling out and in/model series: E30, E46. Can no longer be ordered separately. Only available as part of set 31 2 130 = 83 30 0 491 913.

Storage Location

B13

Suspension

Holding sleeve AM

NOTE: Sleeve E1 (M24) in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Holding sleeve Mechanical tool

NOTE: For counter support when pressing the knurled bolts into the support bearing (spring strut)

Storage Location

B22

Suspension

Holding sleeve AM

NOTE: (Pressure sleeve) For removing and installing the silent blocks in the wishbone.

Discontinued, can only be ordered using complete tool

Suspension

Holding sleeve Minimum set: Mechanical tools AM

NOTE: (Push sleeve) For removing and installing Model series: E38, E39

Storage Location

B13

Suspension

HYDRAULIC CYLINDERS

Hydraulic cylinders AM

NOTE: Hydraulic cylinder (hydraulic actuator) in connection with lever, (81 64 2 156 247), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Insert

Insert Mechanical tool

NOTE: Protective insert As of 08/2011, replaces the previous special tool number 31 3 365

SI number

01 16 11 (738)

Suspension

Insert Mechanical tool

NOTE: Protective insert As of 08/2011, replaces the previous special tool number 31 3 368

SI number

01 16 11 (738)

Suspension

Insert AM

Replaced by: 83300493560

NOTE: (Protective insert) For spring retainer 31 3 122 Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Insert AM

Replaced by: 83300493560

NOTE: (Protective insert) For spring retainer 31 3 123 and 31 3 129 Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Insert AM

NOTE: (Protective insert) For spring retainer 31 3 325

Suspension

Insert Mechanical tool

NOTE: Protective insert As of 08/2011, replaces the previous special tool number 31 3 364. Protective insert suitable for clamping plate 31 3 382 = 83 30 2 213 039.

SI number

01 16 11 (738)

Suspension

Insert AM

In conjunction with: 31 3 352 = 83300493566

NOTE: Protective insert for clamping plate As of 08/2011, replaces the previous special tool number 31 3 362. Protective insert suitable for clamping plate 31 3 352 = 83 30 2 213 026.

SI number

01 16 11 (738)

Suspension

Insert Mechanical tool

NOTE: Protective insert (blue) As of 08/2011, replaces the previous special tool number 31 3 369. Protective insert suitable for clamping plate 31 3 352 = 83 30 2 213 026.

SI number

01 16 11 (738)

Suspension

Insert AM

NOTE: Protective insert As of 08/2011, replaces the previous special tool number 31 3 365. Protective insert suitable for clamping plate 31 3 355 = 83 30 2 213 034.

SI number

01 16 11 (738)

Suspension

Insert Mechanical tool

NOTE: Protective insert (ring) As of 08/2011, replaces the previous special tool number 31 3 356. Protective insert suitable for clamping plate 31 3 354 = 83 30 2 213 031.

SI number

01 16 11 (738)

Suspension

Insert AM

NOTE: (Protective insert) For spring retainer 31 3 322

Suspension

Insert AM

NOTE: (Protective insert) For spring retainer 31 3 323

Suspension

Insert AM

Replaced by: 83300493560

NOTE: (Protective insert) For spring retainer 31 3 125 Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Insert Mechanical tool

NOTE: Protective insert As of 08/2011, replaces the previous special tool number 31 3 363. Protective insert suitable for clamping plate 31 3 353 = 83 30 2 213 029.

SI number

01 16 11 (738)

Suspension

Insert AM

NOTE: (Protective insert) For spring retainer 31 3 329

Suspension

LASER

Laser Minimum set: Mechanical tools AM

Suspension

LEVER

Lever AM

NOTE: Lever in connection with hydraulic cylinder (hydraulic actuator), (81 64 2 156 246), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

LOCATING FIXTURE

Locating fixture Minimum set: Mechanical tools AM

NOTE: For attaching and aligning the laser on the spring strut.

Suspension

Mandrel

Mandrel Mechanical tool

NOTE: (drift) For output shaft radial sealing ring in the front axle differential

Suspension

Mandrel Mechanical tool

NOTE: (Drift) For driving the radial shaft seals into the front wheel hubs and the input flange of the rear axle differential

Suspension

Mandrel Mechanical tool

NOTE: (drift) For radial sealing ring of the drive shaft in the front axle differential

Suspension

Measurement aid

Measurement aid Minimum set: Mechanical tools AM

NOTE: (Measuring aid) 2 units, to determine the vehicle ride height during wheel alignment --> > E36/7 (Z3)

Storage Location

C5

SI number

01 03 96 (042)

Consisting of:

1. Measurement aid

NOTE: (Measurement aid)

Suspension

Measurement aid Minimum set: Mechanical tools AM

NOTE: Prism with mirror, for aligning the laser beam.

Suspension

Measurement aid Minimum set: Mechanical tools AM

NOTE: (Measurement aid)

Suspension

MIRRORS

Mirrors Minimum set: Mechanical tools AM

NOTE: 1 set (2 units) replacement for prism 83 30 2 210 780

Suspension

NUT

Nut AM

NOTE: (Nut with bearing) Can no longer be ordered separately. Only available as part of set 31 2 120 = 83 30 0 491 909.

Suspension

Nut AM

NOTE: (Nut with bearing) Can no longer be ordered separately. Only available as part of set 31 2 120 = 83 30 0 491 909.

Suspension

Pin

Pin AM

NOTE: (Replacement pins) Deletion, only available via tool set

Suspension

Pin Minimum set: Mechanical tools AM

Replaced by: 83302213023

NOTE: Spare part set for basic device (2 locking pins and 1 O-ring) will be available under a new order number 83 30 2 213 023 as of July 2011

SI number

01 16 11 (738)

Suspension

Pin Minimum set: Mechanical tools AM

NOTE: (Cylindrical pin)

Suspension

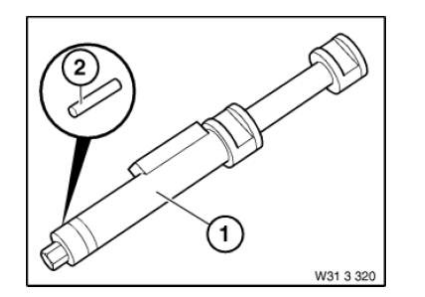

Pin wrench

Pin wrench AM

NOTE: For releasing and tightening down the spring strut bolt

Storage Location

Z1

Consisting of:

2 = Pin

NOTE: (Replacement pins) Deletion, only available via tool set

Suspension

Pin wrench Mechanical tool

NOTE: For unfastening and tightening the spring-strut bolts when replacing the shock absorber

Suspension

Pin wrench Mechanical tool

NOTE: For retightening the shock absorber screw connection in the spring strut without dismantling the spring strut

Storage Location

X10

Suspension

Pin wrench Mechanical tool

NOTE: For releasing and tightening the spring-strut bolts when replacing the "Bilstein" gas-pressure shock absorber

Storage Location

X4

Suspension

Pin wrench Mechanical tool

NOTE: For releasing and tightening the spring strut bolts when replacing the gas pressure shock absorbers

Storage Location

X4

Suspension

Pin wrench Mechanical tool

NOTE: For unfastening and tightening the spring-strut bolts when replacing the shock absorber

Storage Location

X4

Suspension

PIPE

Pipe AM

NOTE: (Guide tube) For installing

Suspension

Pipe AM

NOTE: (Support tube) For installing the rubber mount in the front axle support - series: E12

Suspension

PLATE

Plate AM

Replaced by: 83300492053

NOTE: Discontinuation and replaced by 33 4 200 (0 492 053)

Suspension

Plate Minimum set: Mechanical tools AM

NOTE: Series: E30, E36, E46, E85

Storage Location

A7

Ring

Ring AM

Replaced by: 83300493560

NOTE: (Spring retainer) With insert ring 31 3 101 only for series E46/without insert ring 31 3 101 for series E31, E39 front basic version Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Ring AM

Replaced by: 83302213038

NOTE: (Spring retainer ring) As of 08/2011, available under new item number 83 30 2 213 038.

SI number

01 16 11 (738)

Suspension

Ring AM

Replaced by: 83302213032

NOTE: (Centering ring) As of 08/2011, available under new item number 83 30 2 213 032.

SI number

01 16 11 (738)

Suspension

Ring AM

NOTE: (Centering ring) For centering the spring strut in the spring retainer ring 31 3 324 - Series: E46

Suspension

Ring AM

NOTE: (Insert ring) For centring the spring strut in the spring retainer 31 3 124 - model series: E46

Suspension

Ring AM

Replaced by: 83302213033

NOTE: (Insertion ring) As of 08/2011, available under new item number 83 30 2 213 033.

SI number

01 16 11 (738)

Suspension

Ring AM

Replaced by: 83302213031

NOTE: (Spring retainer ring) As of 08/2011, available under new item number 83 30 2 213 031.

SI number

01 16 11 (738)

Suspension

Ring Mechanical tool

NOTE: Aluminium spacer ring As of 08/2011, the previous special tool 31 3 358 receives this new item number.

SI number

01 16 11 (738)

Suspension

NOTE: (Spring retainer ring) With centering ring 31 3 331 only for series E46/Without centering ring 31 3 331 for series E31, E39 front basis/model: Z3, Z3coupe

Suspension

RING SPANNER

Ring spanner AM

NOTE: Ring fitting tool (ring spanner) to loosen and tighten the screw connections on wishbone and tension strut in conjunction with special tools set 81642185816 (extension).

SI number

08 04 10 (656)

Suspension

Screw

Screw Minimum set: Mechanical tools AM

NOTE: (Pressure bolt) Replaced by 31 2 311 (0 495 800)

Suspension

Screw Mechanical tool

NOTE: (Hexagon screw M12x1.5x132 (4 units)) for screwing in the front axle support when removing and installing the front axle differential

Suspension

Screw AM

NOTE: Screws K1 (M12x1.5) for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Screw AM

NOTE: Screws K2 (M14x1.5) for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Shaped part

Shaped part AM

NOTE: (shaped part) For trailing links without date stamp, up to model year 5/96

Suspension

Shaped part Minimum set: Mechanical tools AM

NOTE: (Shaped part)

Suspension

Shaped part Minimum set: Mechanical tools AM

NOTE: (Shaped part) Pressing off wishbone from wheel control joint E53, E83

Storage Location

C12

Suspension

Shaped part Minimum set: Mechanical tools AM

NOTE: (Shaped part)

Suspension

Shaped part Minimum set: Mechanical tools AM

NOTE: (Shaped part) Pressing off wishbone from wheel control joint E70. SI 1 01 07 (333)

Storage Location

B21

C21

SI number

01 01 07 (333)

Suspension

Socket waf 46

Socket WAF 46 Minimum set: Mechanical tools Mechanical tool

NOTE: For expanding steering knuckle during spring strut removal

Storage Location

C47

SI number

01 05 03 (969)

Suspension

SOCKET WRENCH

Socket wrench Mechanical tool

NOTE: (Socket wrench) for shock absorber support bearing

Storage Location

X3

Suspension

SOCKET WRENCH INSERT

Socket wrench insert Minimum set: Mechanical tools Mechanical tool

NOTE: (Wrench socket 46 mm, 3/4" connection) For loosening and tightening wheel bearing unit

Storage Location

A10

Suspension

Spindle

Spindle Minimum set: Mechanical tools AM

Suspension

Spindle AM

NOTE: Spindle F3 (M24/270mm) in connection with adapter kit 1 (BMW), (81 64 2 155 745) and MINI adapter kit (81 64 2 294 517) for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Spindle AM

NOTE: Spindle F2 (M20/M24/355mm) in connection with adapter kit 1 (BMW), (81 64 2 155 745), and MINI adapter kit, (81 64 2 294 517), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Spindle AM

NOTE: With guide sleeve Discontinued, only available via complete tool

Suspension

Spindle AM

Replaced by: 83300492053

NOTE: Discontinuation and replaced by 33 4 200 (0 492 053)

Suspension

Spindle Minimum set: Mechanical tools AM

NOTE: Spindle (1 piece) series: E30, E36, E46, E85

Storage Location

A7

Suspension

Spindle AM

Replaced by: 83300492053

NOTE: Replaced by 32 3 090. (0 492 053)

Suspension

Spindle AM

NOTE: (Spindle M10 with fixture) discontinued, available as part of set of special tools only

Suspension

Spindle AM

Suspension

Spindle AM

NOTE: Spindle F1 (M24/425 mm) in connection with adapter kit 1 (BMW), (81 64 2 155 745), for removal and installation of wheel bearings, propeller shafts drive flanges.

SI number

08 06 09 (544)

Suspension

Spindle AM

NOTE: With 2 nuts and 2 washers

Suspension

Spring tensioner

Spring tensioner Minimum set: Mechanical tools AM

Replaced by: 83302213022

NOTE: Basic device will receive a new order number as of July 2011

Storage Location

Individual

SI number

01 16 11 (738)

Suspension

Consisting of:

1. Spring tensioner

NOTE: Basic device will be delivered under a new order number 83 30 2 213 022 beginning in July 2011.

2. Pin

NOTE: Spare part set for basic device (2 locking pins and 1 O-ring) will be available under a new order number 83 30 2 213 023 as of July 2011

Spring tensioner Mechanical tool

NOTE: Basic device incl. 2 locking pins and 1 O-ring, safety information and operating instructions. Corresponds to previous special tool number 31 3 340/31 3 341

SI number

01 16 11 (738)

Suspension

Spring tensioner Minimum set: Mechanical tools AM

NOTE: Basic device will be delivered under a new order number 83 30 2 213 022 beginning in July 2011. Spare part (2 locking pins and 1 O-ring) is being delivered under a new order number 83 30 2 213 023

SI number

01 16 11 (738)

Suspension

Spring tensioner AM

NOTE: (Spring tensioner without spring retainer)

Suspension

Spring tensioner AM

Replaced by: 83300493555

NOTE: (Spring tensioner and spring retainer) For tensioning coil springs when removing and installing spring strut. Use only on the front axle. Exception: On E38 and E39 front and rear axle Replaced by 31 3 340. (0 493 555)

SI number

01 02 90 (168)

Suspension

Consisting of:

1 = Spring tensioner

NOTE: (Spring tensioner without spring retainer) Discontinuation and replaced by 31 3 350. (0 493 560)

2 = Holder

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 127 - Model series: E32, E34 Touring, E36 Discontinuation and replaced by 31 3 350. (0 493 560)

3 = Holder

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 128 - Model series: E31, E38, E39 front high (2x) and basic version (1x) Discontinuation and replaced by 31 3 350. (0 493 560)

4 = Ring

NOTE: (Spring retainer) With insert ring 31 3 101 only for series E46/without insert ring 31 3 101 for series E31, E39 front basic version Discontinuation and replaced by 31 3 350. (0 493 560)

5 = Holder

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 126 - model series: E38 rear, E39 Saloon rear Discontinuation and replaced by 31 3 350. (0 493 560)

6 = Insert

NOTE: (Protective insert) For spring retainer 31 3 125 Discontinuation and replaced by 31 3 350. (0 493 560)

7 = Insert

NOTE: (Protective insert) For spring retainer 31 3 122 Discontinuation and replaced by 31 3 350. (0 493 560)

8 = Insert

NOTE: (Protective insert) For spring retainer 31 3 123 and 31 3 129 Discontinuation and replaced by 31 3 350. (0 493 560)

9 = Holder

NOTE: (Spring retainer) With protective insert 31 3 128 - model series: E46 Discontinuation and replaced by 31 3 350. (0 493 560)

11 = Ring

NOTE: (Insert ring) For centring the spring strut in the spring retainer 31 3 124 - model series: E46

Spring tensioner Minimum set: Mechanical tools Mechanical tool

NOTE: Complete set with newly defined delivery specification. As of 08/2011, replaces set 31 3 350 and 31 3 360.

SI number

01 16 11 (738)

Suspension

Spring tensioner AM

NOTE: (Spring tensioner and spring retainer) For tensioning coil springs when removing and installing spring strut. Use only on the front axle. Exception: On E38 and E39 front and rear axle Replaced by 31 3 340 (0 493 555) 31 3 350 (0 493 560)

SI number

01 15 98 (344)

Suspension

Consisting of:

1 = Spring tensioner

NOTE: (Spring tensioner without spring retainer)

2 = Holder

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 327 - Series: E32, E34, E36

3 = Holder

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 328 - Series: E31, E38, E39 front high (2x) and basis (1x)/model: Z3, Z3coupe

4 = Ring

NOTE: (Spring retainer ring) With centering ring 31 3 331 only for series E46/Without centering ring 31 3 331 for series E31, E39 front basis/model: Z3, Z3coupe

5 = Holder

NOTE: (Spring retainer (2 pieces)) With protective insert 31 3 326 - Series: E38 rear, E39 Saloon rear

6 = Insert

NOTE: (Protective insert) For spring retainer 31 3 325

7 = Insert

NOTE: (Protective insert) For spring retainer 31 3 322

8 = Insert

NOTE: (Protective insert) For spring retainer 31 3 323

9 = Holder

NOTE: (Spring retainer) With protective insert 31 3 332 - Series: E46

1 = Ring

NOTE: (Centering ring) For centering the spring strut in the spring retainer ring 31 3 324 - Series: E46

2 = Insert

NOTE: (Protective insert) For spring retainer 31 3 329

Spring tensioner AM

Replaced by: 83300493560

NOTE: (Spring tensioner without spring retainer) Discontinuation and replaced by 31 3 350. (0 493 560)

Suspension

Replaced by: 83300493555

NOTE: Replaced by 31 3 340 (0 493 555)

Suspension

SUPPORT

Support AM

NOTE: (Telescope supports) 4 pieces, no longer available separately, only via special tool set 31 5 250 (83 30 0 495 567)

SI number

01 24 06 (309)

Suspension

Synchronising key

Synchronising key AM

NOTE: For wheel bearing race, outer

Suspension

Synchronising key AM

NOTE: (Thrust piece) For removing

Suspension

Synchronising key Mechanical tool

NOTE: For pressing the rubber mount out of the connecting pipe on the engine support

Storage Location

Y10

SI number

01 04 86 (566)

Suspension

Synchronising key Minimum set: Mechanical tools AM

NOTE: Series: E30, E36, E46, E85

Storage Location

A7

Synchronising key Minimum set: Mechanical tools AM

NOTE: (Synchronizing key, diameter 79 mm) For mounting the rubber mount on the wishbone, series: E46

Storage Location

A7

Suspension

Synchronising key Mechanical tool

NOTE: For pressing out the front wheel bearing

Storage Location

Y5

Suspension

Synchronising key AM

Replaced by: 83300492053

NOTE: Discontinuation and replaced by 33 4 200 (0 492 053)

Suspension

Synchronising key AM

NOTE: For removing and installing the rubber mount in the front axle support - series: E12

Suspension

Synchronising key AM

NOTE: For installing

Suspension

Synchronising key AM

NOTE: For removing

Suspension

Synchronising key AM

NOTE: For wheel bearing race, inner

Suspension

Synchronising key Mechanical tool

NOTE: For pressing the roller bearing onto the differential housing

Suspension

Tool

Tool Mechanical tool

NOTE: Clamping plate As of 08/2011, the previous special tool 31 3 353 receives this new item number

SI number

01 16 11 (738)

Suspension

Tool Minimum set: Mechanical tools AM

NOTE: For removing and installing silent blocks in wishbone support brackets

Storage Location

B13

Consisting of:

1. Holding sleeve

NOTE: (Pressure sleeve) For pulling out and in/model series: E30, E46. Can no longer be ordered separately. Only available as part of set 31 2 130 = 83 30 0 491 913.

Suspension

2. Holding sleeve

NOTE: (Pressure sleeve) For counter-holding/model series: E30 Replaced by 31 2 133. (0 491 916)

3. Holding sleeve

NOTE: (Pressure sleeve) For pulling out and in/model series: E30 All-wheel drive vehicle, E34, E36, E46 Can no longer be ordered separately. Only available as part of set 31 2 130 = 83 30 0 491 913.

Tool AM

NOTE: For removing and installing the silent blocks in the wishbones and leading links.

Storage Location

A13

Consisting of:

5 = Holding sleeve

NOTE: (Pressure sleeve) For gripping the wishbones and for removing and installing the silence blocks in the leading link. Discontinued, can only be ordered using complete tool

1 = Holding sleeve

NOTE: (Pressure sleeve) For removing and installing the silent blocks in the wishbone. Discontinued, can only be ordered using complete tool

Suspension

2 = Holding sleeve

NOTE: (Pressure sleeve) For gripping the wishbones and for removing and installing the silence blocks in the leading link. Replaced by 31 1 054. (0 493 747)

3 = Holding sleeve

NOTE: (pressure sleeve) For gripping the leading link. Series: E24, E28, E32, E34 Discontinued, only available via complete tool

Tool Minimum set: Mechanical tools AM

NOTE: (Pressure bush tool) For removing and installing rubber mounts in trailing and leading links and in wishbones (E46/5)

Storage Location

B13

SI number

01 03 99 (418)

Consisting of:

4 = Holding sleeve

NOTE: (Push sleeve) For removing and installing. Series: E53, E83

Suspension

1 = Holding sleeve

NOTE: (Push sleeve) As counter support when removing and installing. Series: E38, E39, E83 For removing and installing rubber mounts in wishbones/Model series: E46/5

2 = Holding sleeve

NOTE: (Pressure sleeve) For pulling out and in/model series: E38 Replaced by 31 2 263. (0 493 596)

3 = Holding sleeve

NOTE: (Push sleeve) For removing and installing Model series: E38, E39

Tool Mechanical tool

NOTE: The spare parts set (2 locking pins and 1 O-ring) for reorders corresponds to the previous special tool 31 3 342

SI number

01 16 11 (738)

Suspension

Tool AM

NOTE: For pressing in the wheel bearing race - model year: up to 82

Consisting of:

1. Synchronising key

NOTE: For wheel bearing race, inner

2. Synchronising key

NOTE: For wheel bearing race, outer

Suspension

Tool Minimum set: Mechanical tools AM

NOTE: (Extractor) For pressing off wishbone from steering stub.

Storage Location

C12

SI number

01 06 94 (801)

Consisting of:

6 = Shaped part

NOTE: (Shaped part) Pressing off wishbone from wheel control joint E53, E83

Suspension

7 = Shaped part

NOTE: (Shaped part) Pressing off wishbone from wheel control joint E70. SI 1 01 07 (333)

1 = Shaped part

NOTE: (Shaped part)

2 = Shaped part

NOTE: (Shaped part)

3 = Spindle

4 = Screw

NOTE: (Pressure bolt) Replaced by 31 2 311 (0 495 800)

5 = Pin

NOTE: (Cylindrical pin)

Tool Mechanical tool

NOTE: Clamping plate As of 08/2011, the previous special tool 31 3 355 receives this new item number

SI number

01 16 11 (738)

Suspension

Tool AM

NOTE: For removing and installing the silent blocks in the tension struts and wishbones.

Storage Location

Y10

Consisting of:

1. Holding sleeve

NOTE: (Pressure sleeve) for removal discontinued, available as part of set of special tools only

2. Holding sleeve

NOTE: (Pressure sleeve) for counterholding, discontinued, available as part of set of special tools only

3. Holding sleeve

NOTE: (Pressure sleeve) for installing discontinued, available as part of set of special tools only

Suspension

Tool set

Tool set Mechanical tool

NOTE: Retrofit - for authorised BMW dealers who have already received the special tool 31 0 000 from SPX

SI number

01 19 10 (674)

Suspension

Tool set AM

Suspension

NOTE: Threaded spindle set for removing and installing the rubber mount on the rear axle support.

SI number

08 06 10 (658)

Consisting of:

4 = 2208574
3 = 2208575

Tool set AM

Suspension

NOTE: Adapter kit 2 (BMW), (BMW-specific adapters), for installation and removal of wheel bearings, propeller shafts and drive shafts.

SI number

08 12 14 (155)

Consisting of:

1 = 2159721
14 = 2159722
18 = 2156282
| 17 = 2156283
2 = 2159723
16 = 2156275
15 = 2156273
13 = 2156280
12 = 2156279
11 = 2156278
10 = 2156277

Tool set AM

Suspension

NOTE: A set of the BMW hydraulic tool system for wheel bearings and output shafts (basic set for BMW, consisting of 81 64 2 155 744, 81 64 2 155 745, 81 64 2 155 746)

SI number

08 12 14 (155)

Tool set AM

Suspension

NOTE: Hydraulic unit (basic unit) for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 12 14 (155)

Consisting of:

2 = 2156247
1 = 2156246

Tool set Minimum set: Mechanical tools AM

Suspension

In conjunction with: 2357190

NOTE: For positioning the support bearing on the spring strut of the front axle Fitting aid that replaces (blocked) tool 31 0 000

SI number

01 19 10 (674)

Consisting of:

1 = Gauge

NOTE: For positioning the support bearing.

2 = Battery

NOTE: commercially available battery 3V lithium (CR 123A)

3 = Locating fixture

NOTE: For attaching and aligning the laser on the spring strut.

4 = Laser

5 = Mirrors

NOTE: 1 set (2 units) replacement for prism 83 30 2 210 780

7 = Measurement aid

NOTE: Prism with mirror, for aligning the laser beam.

Tool set AM

Suspension

NOTE: Wheel bearing adapter kit 1 (BMW), (spindles and tensioning nuts) for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 12 14 (155)

Consisting of:

15 = 2156262
14 = 2159720
13 = 2156257
12 = 2156256
11 = 2318476
10 = 2159986
9 = 2159985
1 = 2156252
2 = 2156253
3 = 2156254
4 = 2156255
5 = 2156258
6 = 2156260
7 = 2156265
8 = 2156271
16 = 2156270

Washer

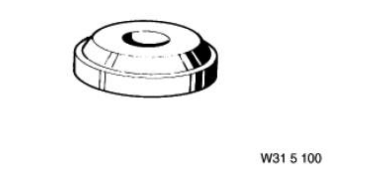

Washer AM

NOTE: (Flanged washer) For centring of threaded spindle and as a support disc for removing and installing the rubber mount in the front axle support and in the wishbones - series: E12

Suspension

Washer AM

NOTE: Contact disc D1 in connection with adapter kit 1 (BMW), (81 64 2 155 745) and MINI adapter kit (81 64 2 294 517), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Washer AM

NOTE: (Measuring disc 7 mm)

Suspension

Washer AM

NOTE: Contact disc (M24) E3 in connection with adapter kit 1 (BMW), (81 64 2 155 745) and MINI adapter kit (81 64 2 294 517), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number

08 06 09 (544)

Suspension

Washer Mechanical tool

NOTE: (Spring washer) For pretensioning the differential side gears when determining the installation size in the front axle differential

Suspension

Washer Mechanical tool

NOTE: For installing the outer bearing race in the bearing housing in the front axle differential

Suspension

Washer Mechanical tool

NOTE: For determining the installation play of the radial gears in the front axle differential

Suspension

WRENCH

Wrench Minimum set: Mechanical tools Mechanical tool

NOTE: For releasing and tightening the shock absorber support bearing bolt

Storage Location

A11

Suspension

FRONT AXLE - RIDE HEIGHT

FRONT AXLE - RIDE HEIGHT SPECIFICATION

Suspension

FRONT AXLE DIFFERENTIAL, 170AL/175AL

FRONT AXLE DIFFERENTIAL SPECIFICATION

Suspension

GENERAL - TRACK WIDTH/WHEELBASE

GENERAL - TRACK WIDTH/WHEELBASE SPECIFICATION

Suspension

Suspension

ANTI-ROLL BAR

TIGHTENING TORQUE SPECIFICATION - ANTI-ROLL BAR

Suspension

FRONT AXLE SUSPENSION

TIGHTENING TORQUE SPECIFICATION - FRONT AXLE SUSPENSION

Suspension

Suspension

FRONT AXLE DIFFERENTIAL

TIGHTENING TORQUE SPECIFICATION - FRONT AXLE DIFFERENTIAL

Suspension

OUTPUT SHAFT

TIGHTENING TORQUE SPECIFICATION - OUTPUT SHAFT

Suspension

Suspension

SPRING STRUTS

TIGHTENING TORQUE SPECIFICATION - SPRING STRUTS

Suspension

TRAILING ARMS AND STRUTS

TIGHTENING TORQUE SPECIFICATION - TRAILING ARMS AND STRUTS

Suspension

WHEEL BEARINGS AND STEERING KNUCKLE

TIGHTENING TORQUE SPECIFICATION - WHEEL BEARINGS AND STEERING KNUCKLE

Suspension

TRANSMISSION OIL FOR FRONT AXLE DIFFERENTIAL

FRONT AXLE FINAL DRIVE OILS CHART

Suspension

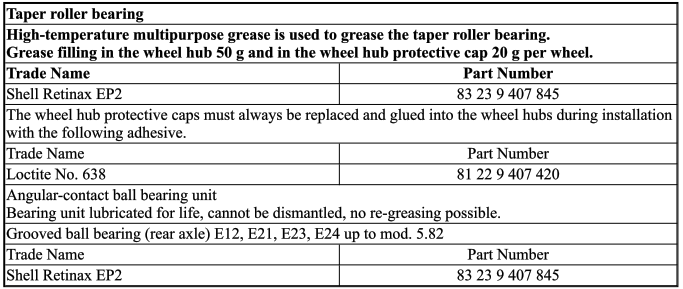

GREASE FOR WHEEL BEARING

WHEEL BEARING GREASE CHART

Suspension

Front axle gearbox
...

General information on high temperature multi-purpose grease
1.0 GENERAL INFORMATION ON HIGH TEMPERATURE MULTI-PURPOSE GREASE High temperature multi-purpose grease consists of a lithium complex soap in a min ...

Other materials:

BMW X3 (F25) Owners Manual > Notes: Reporting safety defects
For US customers The following only applies to vehicles owned and operated in the US. If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration NHTSA, in addition t ...
