Replace entrance for front left door

Observe procedure for REPAIR STAGE 3.

Read contents of BODY, GENERAL.

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES):

  • (1) A-pillar with entrance

Body+and+Frame

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension a = approximately 380 mm in front of Ø 20 mm hole.
Dimension b = approximately 360 mm before separating cut a.

Open welded connections in areas (1).

Installation note: Mark new part in accordance with severance cuts on vehicle and cut.

Weld in REINFORCEMENT PLATES at severance cuts.

Body+and+Frame

Replace sills, left

Procedure OBSERVE repair stage 3! Read contents of BODY, GENERAL.

Use only approved SPOT-WELDING APPARATUS for repairs! Following new body parts are required (see OVERVIEW OF CONSUMABLES):

  • (1) Outer side frame

Body+and+Frame

Removal

Body+and+Frame

Mark severance cut (1) in accordance with dimension and cut.

IMPORTANT: Cut outer panel only.

Measurement a = approx. 40 mm from center point of 8 mm dia. hole.

Open welded connections in areas (2).

Body+and+Frame

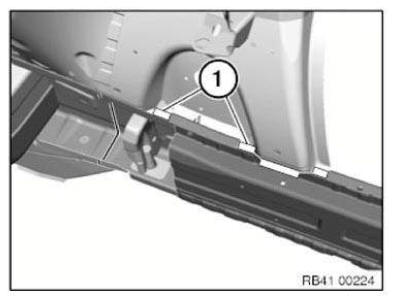

Open welded connections in area (1).

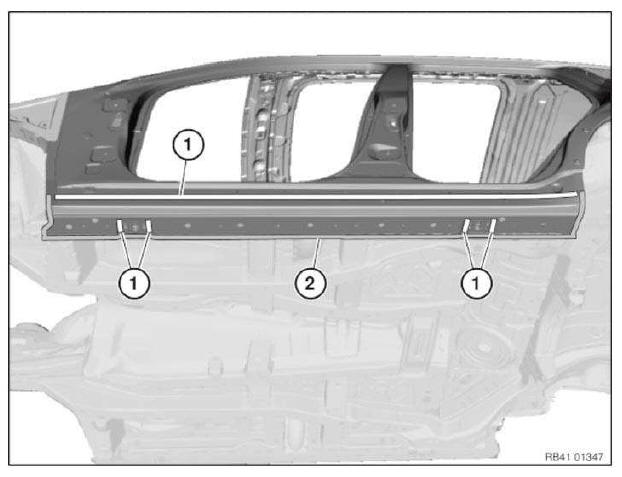

Remove sill.

New part preparation

Body+and+Frame

Mark severance cut (1) on the new part according to vehicle + 20 mm extra material and cut.

Body+and+Frame

Adjust new part to fit and secure.

Prepare new part for plug-weld in areas (1).

In area (2) prepare new part for spot-weld.

Remove new part and deburr holes.

Installation

Install new part and weld.

REPLACING ENGINE SUPPORT IN FRONT OF BULKHEAD ON RIGHT

Operation is identical to REPLACING ENGINE SUPPORT IN FRONT OF BULKHEAD ON LEFT.

REPLACING ENGINE SUPPORT IN FRONT OF BULKHEAD, LEFT

Observe procedure of REPAIR STAGE 3.

Read contents of BODY, GENERAL.

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

The following body new parts are required (refer to OVERVIEW OF CONSUMABLES)

  • (1) Engine support

Body+and+Frame

Removing the engine support

View of inside engine support.

Mark severance cut in accordance with dimension and cut.

Dimension a = approx. 110 mm from engine support edge.

Open welded connections in areas (1).

Remove partial section (2).

Body+and+Frame

Mark severance cut in accordance with dimension and cut.

Dimension a = 140 mm from cross brace bulkhead.

IMPORTANT: Cut outer metal panel only.

Open welded connections in areas (1) and (2).

Body+and+Frame

Open welded connections in areas (1).

Body+and+Frame

Open welded connections in area (1).

Body+and+Frame

Open welded connections in areas (1) and remove engine support.

Body+and+Frame

New part preparation

Mark severance cut (1) in accordance with vehicle and cut.

Open welded connections in areas (2).

Remove metal section (3).

NOTE: The metal section (3) is needed to close the engine support.

Mark severance cut in accordance with vehicle and cut.

Body+and+Frame

Adjust new parts to fit with alignment bracket or universal mounting.

Prepare REINFORCEMENT PLATES at severance cuts.

Installing engine support

Install new parts and reinforcement plates with alignment bracket or universal mount and weld.

NOTE: The bulkhead cross member (1) is filled with low-flammable cavity foam.

In case of smoke formation, stop the welding procedure and cool the welded area with compressed air if applicable.

  • (2) Bulkhead
  • (3) Engine support

Body+and+Frame

MAG-weld new part in area (1).

Length of weld seam approx. 15 mm.

Body+and+Frame

Replacing engine support in front of wheel arch, left

Follow procedure for REPAIR STAGE 3.

Read contents of BODY, GENERAL.

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES):

  • (1) Engine support, front

Body+and+Frame

Removing the engine support

Open welded connections in area (1).

Body+and+Frame

Mark severance cut in accordance with Dimension a and cut.

Dimension a=85 mm before wheel arch edge.

Remove section of engine support.

NOTE: Shown without carrier support for purposes of clarity.

Body+and+Frame

Preparation of new part: Mark severance cut on new part in accordance with vehicle and cut.

Prepare REINFORCEMENT PLATE at severance cut.

Adjust new part to fit with alignment bracket or universal mount.

Installing engine support

Install new parts and reinforcement plates with alignment bracket or universal mount and weld.

MAG-weld new part in area (1).

Length of weld seam approx. 15 mm.

Body+and+Frame

REPLACING ENGINE SUPPORT IN FRONT OF WHEEL ARCH, RIGHT

Operation is identical to REPLACING ENGINE SUPPORT IN FRONT OF WHEEL ARCH ON LEFT.

REPLACING ENGINE SUPPORT WITH FRONT RIGHT WHEEL ARCH IN FRONT OF BULKHEAD

Note the specific procedure with regard to the vehicle identification number (if necessary, order new body part with the vehicle identification number).

Operation is identical to REPLACING ENGINE SUPPORT IN FRONT OF BULKHEAD ON LEFT.

Replacing engine support with left wheel arch in front of bulkhead

Observe procedure of REPAIR STAGE 3.

Read contents of BODY, GENERAL.

Spot-weld bonding is used on this vehicle. Observe specific procedure .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES):

  • (1) Wheel arch, front
  • (2) Outer wheel arch carrier support
  • (3) Carrier support end plate
  • (4) A-pillar bulkhead
  • (5) Shaped part, wheel arch carrier support (not shown)

Body+and+Frame

Removal of engine support with wheel arch

Mark severance cut (1) roughly as pictured and cut.

Open spot-welded adhesive joints in area (2) Open welded connections in area (3).

Release metal section from cavity sealing (4) and remove.

NOTE: Separating cut (1) is only required for removal.

Body+and+Frame

Mark severance cut (1) as pictured and cut.

IMPORTANT: Cut outer metal panel only.

Open welded connections in areas (2).

Remove carrier support end plate metal section (3).

Body+and+Frame

Mark severance cut (1) as pictured and cut.

Body+and+Frame

Open welded connections in area (1).

Body+and+Frame

Open weld joint in area (1).

Body+and+Frame

Mark severance cut (1) in accordance with dimension and cut.

Dimension a = 110 mm from engine support edge.

Open welded connections in area (1).

Remove partial section (2).

Body+and+Frame

Body+and+Frame

Mark and cut severance cut (1) at a distance of approx. 25 mm to bulkhead cross member (2).

Open welded connections in areas (3).

Remove engine support with wheel arch.

NOTE: New part is installed with overlap in area of severance cut (1).

New part preparation

Release the applicable welded connections and remove metal sections that are not needed from the new wheel arch.

Mark severance cut (1) in accordance with vehicle and cut.

Open welded connections in areas (2).

Remove metal section (3).

NOTE: The metal section (3) is needed to close the engine support.

Body+and+Frame

Perform severance cut (1) according to illustration.

Carry out severance cut (2) in accordance with severance cut on vehicle + 15 mm extra material.

Mark further severance cuts in accordance with vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

Adjust new parts to fit with alignment bracket or universal mounting.

Body+and+Frame

Adjust the new A-pillar bulkhead (1) in the area of the reinforcement plate (2).

(The new A-pillar bulkhead is set onto the reinforcement plate)

Body+and+Frame

Installation of engine support with wheel arch

Apply sealant to new CAVITY SEALING of wheel arch carrier support.

Install new parts and reinforcement plates with alignment bracket or universal mount and weld.

Weld the new part to the body in the areas (1) and (2)!

Body+and+Frame

NOTE: The bulkhead cross member (1) is filled with low-flammable cavity foam.

In case of smoke formation, stop the welding procedure and cool the welded area with compressed air if applicable.

  • (2) Bulkhead
  • (3) Engine support

Body+and+Frame

Weld new components in area (1) additionally.

Body+and+Frame

REPLACING ENTRANCE FOR FRONT RIGHT DOOR

Operation is identical to replacing FRONT LEFT DOOR ENTRANCE.

REPLACING RIGHT SIDE SILL

Operation is identical to replacing LEFT SIDE SILL.

Replacing the carrier support before the wheel arch on the left

Read contents of BODY, GENERAL.

Follow procedure for REPAIR STAGE 2.

STRIP DOWN vehicle.

The following new body parts are required (refer to OVERVIEW OF CONSUMABLES):

  • (1) Outer wheel arch carrier support
  • (2) Carrier support, inner wheel arch section
  • (3) Holder DSC (right side of vehicle only)

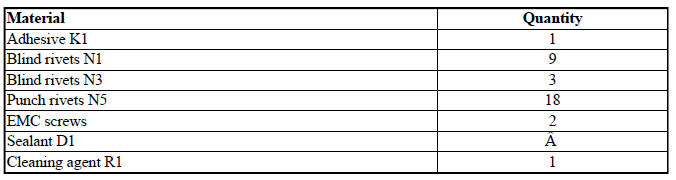

Following CONSUMABLES are required:

Body+and+Frame

Body+and+Frame

Removing carrier support

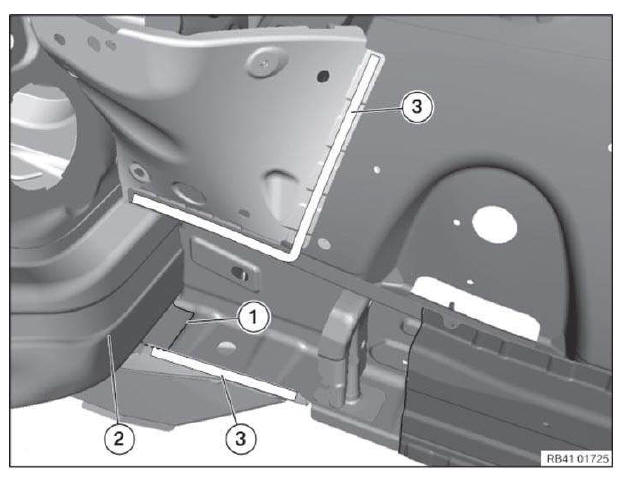

Open welded connections in area (1).

Body+and+Frame

Right side of vehicle only:

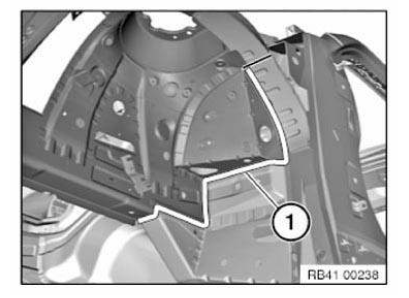

Open weld joint in area (1).

Body+and+Frame

Body+and+Frame

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Fully sever the carrier support at severance cut (1)!

Only sever outer panel at severance cut (2)!

Dimension a = approx. 40 mm from bore hole Ø 20 mm.
Dimension b = approx. 50 mm from severance cut (1).

Open welded connections in areas (3).

Remove carrier support sections.

New part preparation

Mark new part in accordance with severance cut on vehicle (1) + 20 mm extra material and cut (2).

NOTE: Install new part overlapping in area of severance cut.

Body+and+Frame

Mark new part in accordance with severance cut on vehicle and cut (1).

For the severance cut, create a REINFORCEMENT PLATE (welded) from the trim of the new part.

Adjust new parts with add-on parts to fit and secure.

Body+and+Frame

In areas (1) to (3), introduce Ø 6.8 mm bore holes for blind rivets N1.

Body+and+Frame

Body+and+Frame

In areas (1) and (2) introduce one Ø 6.8 mm bore hole for blind rivets N1.

Body+and+Frame

Prepare area of overlap (1) for plug-welding.

Body+and+Frame

Prepare area of reinforcement plate (1) for plug-welding.

Body+and+Frame

Right side of vehicle only: Fit DSC (1) holder.

In areas (2), introduce three bore holes Ø 4.2 mm for blind rivets N3.

Remove new parts and deburr bore holes.

Body+and+Frame

IMPORTANT: Structure bonding! OBSERVE preparation of bonding surfaces.

Installing carrier support

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new parts with add-on parts and rivet with blind rivets.

Plug-weld in area of overlap (1).

At severance cut additionally set 4 metal active gas weld seams each with a length of 1 cm.

Body+and+Frame

Install and weld reinforcement plate in area of severance cut.

Clean bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces, and adjust and fix new part.

In areas (1) and (2), rivet each new part with 9 punch rivets N5.

In area of severance cut, weld new part and reinforcement plate.

IMPORTANT: Risk of damage to adhesive area! Avoid applying excessive heat to the neighboring adhesive areas!

Body+and+Frame

NOTE: Do not seal new parts in adhesive rivet areas (1) and (2).

After hardening of adhesive, in areas (2) and (3) install one EMC SCREW in each case.

Body+and+Frame

Replacing the carrier support before the wheel arch on the right

Note the specific procedure with regard to the vehicle identification number (if necessary, order new body part with the vehicle identification number).

Operation is identical to REPLACING CARRIER SUPPORT IN FRONT OF WHEEL ARCH ON LEFT.

STRIPPING OPERATIONS - REPLACING CARRIER SUPPORT IN FRONT OF LEFT WHEEL ARCH

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

  • Disconnect battery earth lead (61 20 900 )
  • Remove bumper trim (51 11 156 )
  • Remove front panel (41 33 039)
  • Remove front underbody protection assembly (51 47 490 )
  • Remove front side panel (41 35 081)
  • Remove front wheel arch cover (front section) (51 71 038 )
  • Remove intake silencer housing (INTAKE SILENCER )
  • Partially release left wiring harness
Body repair instructions
...

Luggage compartment floor
...

Other materials:

BMW X3 (F25) Owners Manual > Notes: Reporting safety defects
For US customers The following only applies to vehicles owned and operated in the US. If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration NHTSA, in addition t ...
