BMW X3 (F25) Service & Repair Manual: Luggage compartment floor

BMW X3 (F25) Service & Repair Manual / Body and Frame / Luggage compartment floor

Replace luggage compartment floor and both side members (tail panel trim removed)

Read contents of BODY, GENERAL.

STRIP DOWN VEHICLE

Place vehicle on straightening bench.

Observe procedure of REPAIR STAGE 3.

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES):

  • (1) Wheel arch extension, rear left and right
  • (2) Luggage compartment floor, left and right
  • (3) Side member, bottom rear left and right

Body+and+Frame

  • (4) Fixture, impact absorber, left and right
  • (5) Side member, top left and right
  • (6) Battery tray

Following CONSUMABLES are required:

Body+and+Frame

Removal of complete rear luggage compartment floor:

Operations described predominantly on the left side. Right side identical.

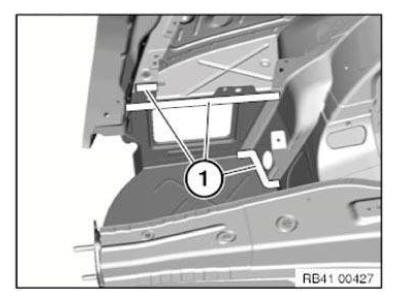

Open welded connections in area (1).

Body+and+Frame

Open welded connections in areas (1).

Body+and+Frame

Open welded connections in area (1).

Remove the luggage compartment floor.

NOTE: Shown without side panel for purposes of clarity.

Body+and+Frame

View from below.

Open welded connections in the area (1) and remove battery tray (2).

Body+and+Frame

Open welded connections in area (1).

Body+and+Frame

Body+and+Frame

Mark severance cut (1) in accordance with dimension and cut.

IMPORTANT: Cut outer panel only.

Dimension a = 30 mm from wheel arch component edge.

Open welded connections in areas (2).

Remove side member.

New part preparation

Mark severance cut on side member in accordance with severance cut on vehicle and cut.

Prepare REINFORCEMENT PLATE for severance cut.

Adjust new parts to fit with alignment bracket or universal mount and secure.

In areas (1) and (2) set 4.2 mm dia. holes for blind rivets.

Body+and+Frame

Remove new parts and deburr bore holes.

Body+and+Frame

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Installing side member and luggage compartment floor, left and right: Install new parts with alignment bracket or universal mount and weld analogue to series standard:

  • Extension, side member
  • Mounting, impact absorber
  • Luggage compartment floor
  • Wheel arch extension

Installing luggage compartment floor (battery tray): Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

After hardening of the adhesive install 6 EMC SCREWS in the areas shown (1).

Body+and+Frame

Replacing left luggage compartment floor (tail panel has been removed)

Observe procedure for REPAIR STAGE 3.

Read contents of BODY, GENERAL.

Following new body parts are required:

  • (1) Luggage compartment floor, left section
  • (2) Rear wheel arch extension

Body+and+Frame

Removal

Open welded connections in area (1).

Body+and+Frame

Open welded connections in areas (1).

Body+and+Frame

Shown without side panel for purposes of clarity.

Open welded connections in areas (1).

Remove the luggage compartment floor.

Body+and+Frame

Installation

Install new part and weld.

IMPORTANT: Only weld new part in areas (1) after installing tail panel!

Body+and+Frame

Replacing luggage compartment floor, middle section (tail panel removed)

Read contents of BODY, GENERAL.

STRIP DOWN VEHICLE

Observe procedure for (REPAIR STAGE 2)!

Following new body parts are required:

  • (1) Battery tray

Following CONSUMABLES are required:

Body+and+Frame

Body+and+Frame

Body+and+Frame

Removal of luggage compartment floor

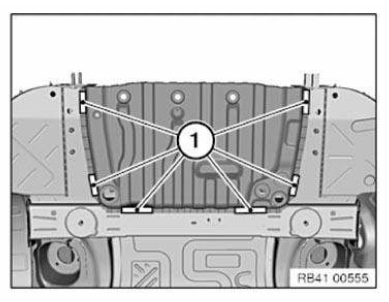

Open welded connections in area (1).

Remove the luggage compartment floor.

Body+and+Frame

New part preparation

Adjust new part in conjunction with tail panel and secure.

In areas (1) and (2) set 4.2 mm dia. holes for blind rivets.

Body+and+Frame

Remove new parts and deburr bore holes.

Body+and+Frame

IMPORTANT: Do not grind new part and body in area of bonding surfaces.

Installation of luggage compartment floor:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

After hardening of the adhesive install 6 EMC SCREWS in the areas shown (1).

Body+and+Frame

Stripping operations - replacing luggage compartment floor and both side members (tail panel removed)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

  • Remove positive battery cable (61 12 002 )
  • Remove exhaust system.
  • Remove heat shield
  • Remove the left luggage compartment wheel arch panel (51 47 151 )
  • Right luggage compartment wheel arch panel (51 47 161 )
  • Remove front left and right wheel arch cover (51 71 041 )

Body+and+Frame

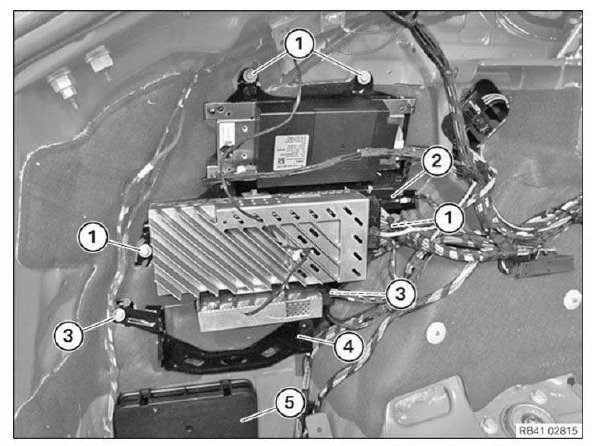

Release screws (1). Undo various connectors from control units and lay holder (2) to one side.

Release screws (3). Undo various connectors from control units and lay holder (4) to one side.

Release wiring harness at attachment points (1) and set aside.

Release wiring harness at attachment points (1) and lay to one side.

Lever out expanding rivet (2) and remove insulating mat (3).

Release latch mechanisms and remove rear ventilation (4).

Installation note:

The rear ventilation (4) must not be damaged. (watertightness).

All latch mechanisms must engage audibly.

Body+and+Frame

Release grommet (1) for water drain hose of the slide/tilt sunroof and lay to one side.

Remove foam insert (2).

Installation note: Please ensure correct installation of the grommet. (watertightness).

Body+and+Frame

Release grommet (1) for water drain hose of the slide/tilt sunroof and lay to one side.

Installation note: Please ensure correct installation of the grommet. (watertightness).

Body+and+Frame

Disconnect plug connection (1) for the EMF.

Detach cable (2) from cable clip.

Release cable (2) from vehicle underbody.

Body+and+Frame

Undo grommet (1) and remove wiring harness (2) for the electromagnetic parking brake for the EMF towards the top.

Undo cable connector (3) for the positive battery cable and lay line (4) to one side.

Release grommet and feed out positive wire (5) to the side.

Body+and+Frame

Stripping operations - replacing luggage compartment floor, middle (tail panel removed)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

  • Remove positive battery cable (61 12 002 )
  • Remove exhaust system.
  • Remove exhaust system heat shield

Body+and+Frame

Remove control units from holder (1) and lay in the front. Remove holder (1).

Remove POSITIVE BATTERY CABLE (2).

Undo positive battery cable (3) from operation support point.

Feed positive battery cables (3) and (4) through opening in luggage compartment floor.

Release and remove battery earth lead (5) from body.

Release nuts and remove operation support point (6).

Disconnect plug connection (1) for the EMF.

Detach cable (2) from cable clip.

Release cable (2) from vehicle underbody.

Body+and+Frame

Undo grommet (1) and remove wiring harness (2) for the electromagnetic parking brake for the EMF towards the top.

Undo connector (3) for the positive battery cable and put line (4) to one side.

Undo grommet and remove positive wire (5) towards the bottom and put to one side.

Body+and+Frame
