BMW X3 (F25) Service & Repair Manual: Rear brakes

Guideline for applying brake pad paste on brake pads and brake anchor plate

IMPORTANT: So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).

Spread brake pad paste onto the marked surfaces using a brush!

  1. Brake pad paste 100 gr. BMW part no. 83 19 2 158 852
  2. Brake pad paste 3 gr. BMW part no. 83 19 2 158 851
  3. Brush for spreading brake pad paste over the marked areas.

Brakes

Brake IPS (CBI) 1-piston floating caliper brake (model ranges: 1-Series, 3-Series, 4-Series, X3)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Apply a thin coating of brake pad paste to T-head of inner brake pad in area (1) and (2).

Brakes

Apply a thin coating of brake pad paste to T-head of outer brake pad in area (1) and (2).

Brakes

Brake FN (Continental Teves) 1-piston floating caliper brake (model ranges: 5-Series, 6-Series, 7-Series, 8-Series, X1, X3, X5, Z4, RR)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Brakes

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Brakes

Brake FN (Continental Teves) 2-piston floating caliper brake (model ranges: 5-Series, 6-Series, 7-Series, 8-Series, X5, RR)

Clean contact surface (2) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surface (1) and brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Brakes

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Brakes

Brake Collette (TRW) 1-piston brake caliper (model ranges: MINI, 1-Series, 5-Series, 6-Series, Z4)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surface (1) for the brake pads on the brake caliper mounting bracket. Clean guide surface (1) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Apply a thin coating of brake pad paste to both sides of T-head of brake pad in area (1).

Brakes

Brake P 4.40 (Brembo) 4-piston fixed caliper brake (model ranges: MINI, 1-Series, 3-Series, 4-Series, 5- Series, 6-Series, 7-Series, 8-Series, X5, RR)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (2) for the brake pads on the brake caliper mounting bracket. Clean guide surface (2) with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Brakes

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Brakes

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Brakes

Brake P 4.40 (Brembo) 2-piston fixed caliper brake (model ranges: 1-Series, 3-Series)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (2) for the brake pads on the brake caliper mounting bracket. Clean guide surface (2) with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Brakes

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Brakes

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Brakes

OVERVIEW OF REAR BRAKE

Brakes

Precision-turning both rear brake discs on both sides

IMPORTANT: Always precision-turn both sides of both brake discs on one axle.

Maximum machining dimension per friction ring side is 0.8 mm! Observe MINIMUM BRAKE DISC THICKNESS (MIN TH).

Brake discs of M models (Compound brake discs) must not be machined! Only one brake pad set may be used up on brake discs which have been lathe-turned to minimum thickness (MIN TH).

Stationary brake disc lathe:

IMPORTANT: Only BMW-approved brake disc lathes may be used!

In the case of stationary brake disc lathes, the BRAKE DISC must be removed.

Brakes

Mobile brake disc lathe:

IMPORTANT: Only BMW-approved brake disc lathes may be used!

In the case of mobile brake disc lathes, the brake calipers and brake anchor plates must be removed.

The brake discs remain on the vehicle.

Brakes

After fine-grinding the brake discs, measure the THICKNESS DIFFERENCE inside the braking surfaces at 8 points with an external caliper gauge.

Brakes

Removing and installing or replacing both rear brake discs

Special tools required:

  • 34 1 280

Necessary preliminary tasks:

  • Remove WHEELS .
  • Remove and clean BRAKE PADS.

After completing repair work:

  • Adjust parking brake (not F10, F11, F12, F13, F18, F25).
  • Read and comply with notes on breaking in new brake discs/brake pads.

Check minimum brake disc thickness:

  • Position special tool 34 1 280 at three measuring points in area (1) and measure.
  • Compare measuring result and lowest value with SETPOINT VALUE .

NOTE: If the brake discs are replaced, you must also fit new brake pads.

Always replace brake discs in pairs.

Brakes

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the MINIMUM BRAKE DISC THICKNESS (MIN TH).

Release screws (1). Detach brake-caliper support.

Brakes

IMPORTANT: To release brake disc: Do not under any circumstances strike friction ring with a hammer or similar! If necessary, carefully tap on base of brake disc chamber with a rubber mallet.

Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.

Unevenness on contact surface may result in distortion of brake disc!

Release screw (1) and remove brake disc (2).

Installation note: Replace screw.

Brakes

Removing and installing or replacing brake pads on both rear disc brakes (trw floating caliper)

Special tools required:

  • 34 1 280
  • 2 320 871
  • 2 320 299

IMPORTANT:

  • Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
  • Retaining pins and expanding spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g). Spread brake pad paste onto the marked surfaces using a brush! Observe REGULATION ON APPLYING BRAKE PAD PASTE TO BRAKE PADS AND BRAKE ANCHOR PLATES!

WARNING: During repair work on the rear brake it must be ensured that the push button for the electrical parking brake cannot be activated.

Necessary preliminary tasks:

  • REMOVE WHEELS .
  • Remove rear brake pad wear sensor.

When the repair work is complete, please pay attention to the following:

  • Switch on ignition and, using electrical parking brake operating element, open parking brake once, close once and open again.

Unscrew guide bolts (1).

If necessary, grip at hexagon head (2).

Remove brake caliper (3).

Installation note: Replace guide bolts.

Brakes

Remove brake pads (1) in direction of arrow from brake anchor plate.

IMPORTANT: Mark any worn brake pads.

In the event of one-sided brake pad wear, do not change brake pads round.

Observe MINIMUM THICKNESS OF BRAKE PADS .

Clean brake pads.

Do not apply grease to brake lining backplate.

Brakes

Check minimum brake disc thickness:

  • Position special tool 34 1 280 at three measuring points in area (1) and measure.
  • Compare measuring result and lowest value with SETPOINT VALUE .

Brakes

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the MINIMUM BRAKE DISC THICKNESS (MIN TH).

Place special tool 2 320 871 , 2 320 299 on brake piston.

Use reversible ratchet (1) to turn back brake piston up to limit position.

IMPORTANT: When pressing piston back, note brake fluid level in expansion tank.

Overflowing brake fluid will damage the paintwork.

Brakes

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Check dust boot for damage and renew if necessary.

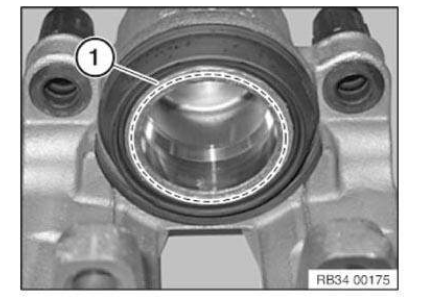

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Brakes

So as not to damage the surface coating, if possible do not mechanically clean the guide surface (1) for the brake pads on the brake caliper mounting bracket. Clean guide surface (1) with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Apply a thin coating of brake pad paste to both sides of T-head of brake pad in area (1).

Brakes

IMPORTANT: Brake pad with bulge (1) is intended for accommodating the brake pad wear sensor and must be fitted on the piston side.

Brakes

NOTE: After completing repair work:

  • Fully depress brake pedal several times so that brake pads contact brake discs.
  • When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" mark.
  • Read and comply with notes on breaking in new brake discs/brake pads.
  • When replacing pads, reset CBS display in accordance with factory specification.
  • The installation position of the actuators is automatically overridden by detecting a speed signal.

Replacement: Remove lining springs (1) and replace.

Installation note: So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner and apply a thin coating of brake pad paste.

Brakes

Removing and installing or replacing rear left or right brake caliper (trw)

Necessary preliminary tasks:

  • Remove WHEEL .
  • Read and comply with GENERAL INFORMATION.
  • Switch off ignition.

After completing repair work: BLEED BRAKE SYSTEM.

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Brakes

IMPORTANT: Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Brakes

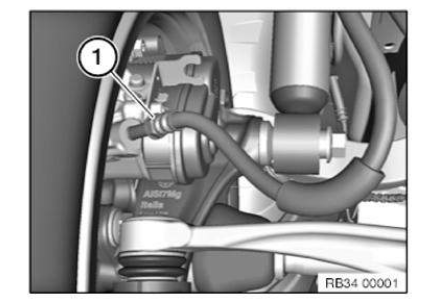

Detach brake hose (1) from brake caliper.

Brakes

IMPORTANT: Never twist brake hose when installing it and avoid all contact with components attached rigidly to the body.

NOTE: First tighten brake hose on brake caliper.

Insert brake hose in bracket and screw onto brake pipe.

Disconnect plug connection on parking brake actuator.

IMPORTANT: Switch off ignition at least 30 s before disconnecting the plug connection!

Unscrew guide bolts (1).

If necessary, grip at hexagon head (2).

Remove brake caliper (3).

Installation note: Replace guide bolts.

Brakes

The EMF actuator must be remounted if the brake caliper is replaced.

After installation, observe the following: switch on ignition and, using parking brake operating element, open parking brake once, close once and open again.

Removing and installing/renewing a brake anchor plate/brake guard plate at rear

Necessary preliminary tasks:

  • Remove wheel bearing.

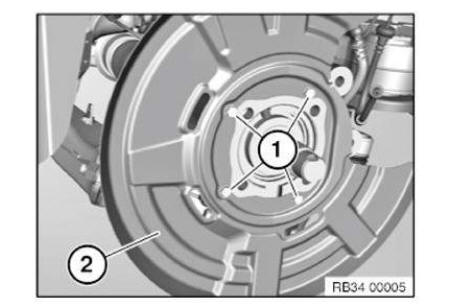

Unscrew bolts (1) and remove brake guard plate (2).

Installation note: Replace screws.

Remove retaining plate (2) in direction of arrow.

Feed out brake guard plate (3) over wheel hub.

Brakes

Removing and installing/replacing vent valve for brake caliper

Necessary preliminary work:

  • Raise vehicle.

Removal: Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Brakes

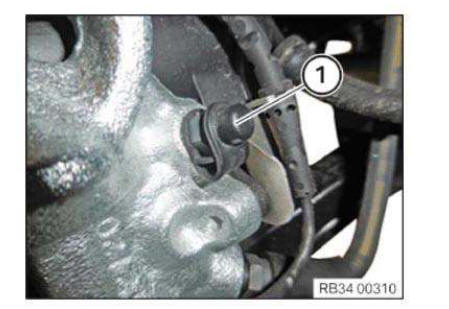

Remove dust cap (1).

Brakes

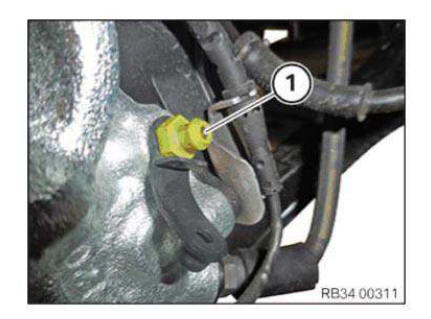

Remove vent valve (1).

IMPORTANT: Collect escaping brake fluid in a suitable collecting vessel.

Brakes

Installation:

IMPORTANT: The bore hole must be free of contamination!

Brakes

Mount dust cap (1).

Brakes

Remove pedal support.

Brakes

Required follow-up work:

  • Bleed brake system.

Replacing rear left or right dust boot on brake caliper

Necessary preliminary tasks:

  • Remove rear BRAKE PADS.

NOTE: Dust boot can be replaced without dismantling the brake caliper and without removing the piston.

Use original BMW repair kit.

When the repair work is complete, please pay attention to the following:

  • Check brake pads and brake discs for wear.
  • Perform brake test on test stand
  • Perform test drive.

Remove dust boot (1) from brake caliper (2) in direction of arrow with a suitable tool.

IMPORTANT: Dust boot must not be re-used!

Brakes

Clean contact surface of dust boot at brake caliper housing (1) and piston groove (2) with a lint-free cloth.

IMPORTANT: Carefully check brake caliper housing, cylinder bore and brake piston for damage and corrosion! Corroded or damaged components must be replaced! The contact surface on the brake caliper housing must be dry and free of grease before installing the dust boot!

Brakes

Pull sealing lip (1) of dust boot over the brake piston until the dust boot (2) is properly seated in the brake piston groove.

Put dust boot (2) uniformly onto contact surface of brake caliper housing and uniformly push in.

IMPORTANT: The dust boot must be correctly lying against the entire circumference of the brake caliper housing and the brake piston groove.

Brakes

Front brakes
OVERVIEW OF FRONT BRAKES ...

Master brake cylinder
OVERVIEW OF BRAKE MASTER CYLINDER/BRAKE BOOSTER ...

Other materials:

BMW X3 (F25) Service & Repair Manual > Suspension: General information on high temperature multi-purpose grease
1.0 GENERAL INFORMATION ON HIGH TEMPERATURE MULTI-PURPOSE GREASE High temperature multi-purpose grease consists of a lithium complex soap in a mineral oil product with a selected combination of additives. Extremely fine soap is contained in the oil, and serves as the basic ingredient. This ...
