Removing and installing brake booster vacuum pressure sensor

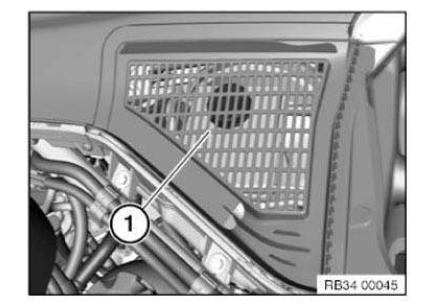

Detach service opening (1).

Brakes

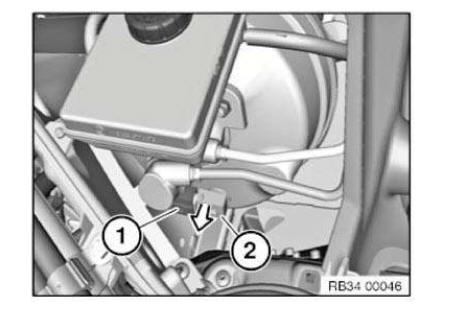

Disconnect plug connection (1) at vacuum sensor.

Carefully remove vacuum sensor (2) from brake booster in direction of arrow.

Installation note:

Check seal in brake booster and replace if necessary.

Brakes

Removing and installing/replacing dsc hydraulic unit

Necessary preliminary tasks:

  • Read and comply with GENERAL INFORMATION.

After completing repair work:

  • BLEED BRAKE SYSTEM.

IMPORTANT: Do not mix up brake lines.

If necessary, mark before removal.

Brake lines must not be bent.

Close off connecting bores with seal plugs.

Press brake pedal down to floor and secure with pedal support.

NOTE: The brake pedal may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank when the brake lines are opened.

Brakes

Disconnect plug connection (1).

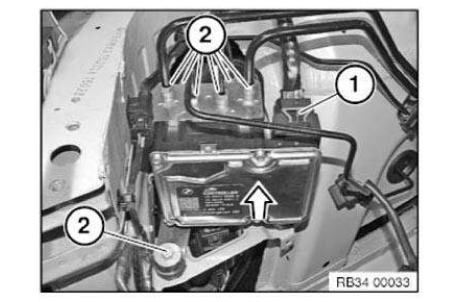

Unfasten brake lines (1).

Undo screw (3) and remove hydraulic unit upwards in direction of arrow.

Brakes

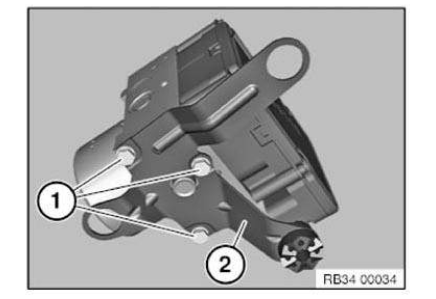

Release screws (1) and remove holder (2).

Brakes

If the control unit is replaced:

  • Carry out programming/encoding.
