REPLACING SPRING FOR BRAKE PEDAL

Necessary preliminary work:

  • Remove trim panel for pedal mechanism .

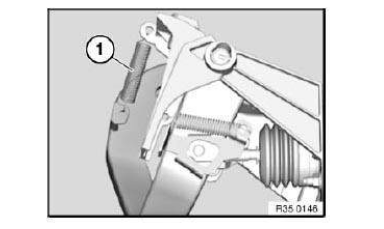

Disconnect return spring (1).

Brakes

REPLACING SPRING FOR CLUTCH PEDAL

Necessary preliminary work:

  • Remove trim panel for pedal mechanism .

Disconnect return spring (1).

Brakes

    Pedal mounting block
    REMOVING AND INSTALLING (REPLACING) COMPLETE BEARING SUPPORT FOR FOOT PEDAL IMPORTANT: When the repair work is complete, please pay attention ...

    Clutch pedal with linkage
    ...
