REMOVING AND INSTALLING OR REPLACING ACCELERATOR PEDAL MODULE

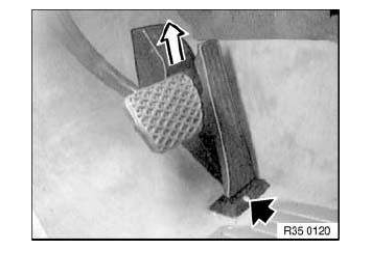

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Brakes

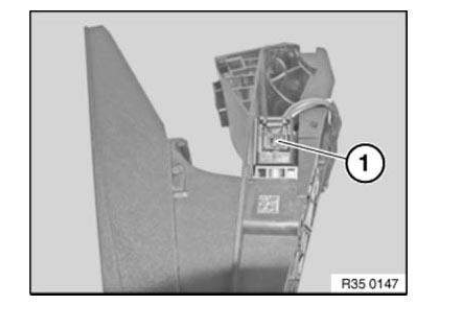

Pull off connector (1).

Remove accelerator pedal module.

Brakes

IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.

Removing and installing/replacing over-center helper spring

Necessary preliminary work: Remove pedal trim . Press end of pin (1) together with offset pliers and press out pin. Push in pin (1) fully ...

Pedals

...
